INFORMATION DETAILS
ID: 13285647
|
Year: 2014
|
Make: Machinability
|
Model: V-48
|
Type: New
|
| MSRP:
N/A |
Engine Size - cc: N/A |
| Trip Edge: | Torsion Spring Tripping Edge |
| Capacity: | 10', 12', 14' & 16' |
| Dimentions: | 48" H x 123"-195" (Based on Model) |
| Approx Weight: | 1,590-2,330 lbs (Based on Model) |
| HP Range: | 100-250 hp (Based on Model) |
SELLER DESCRIPTION
Indispensable Features

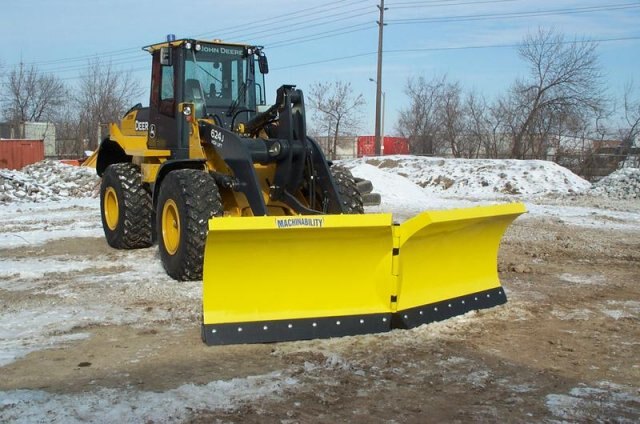

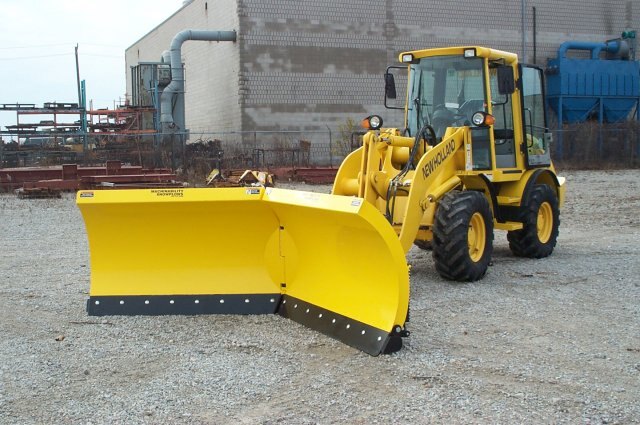

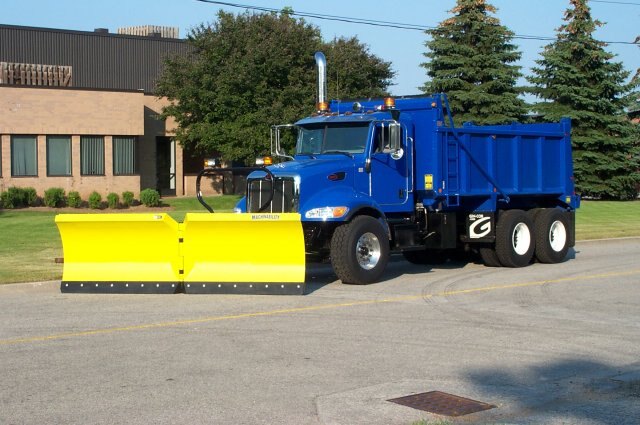

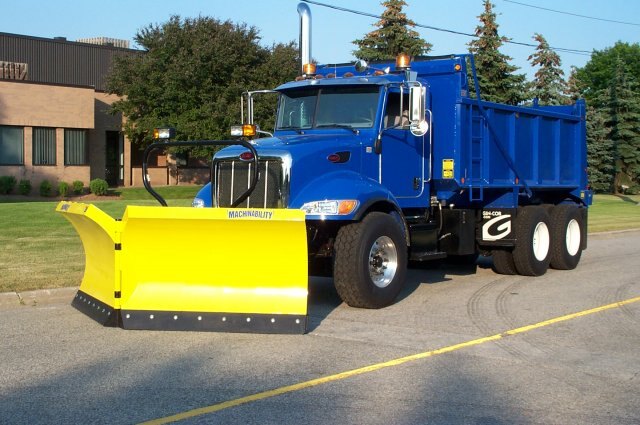

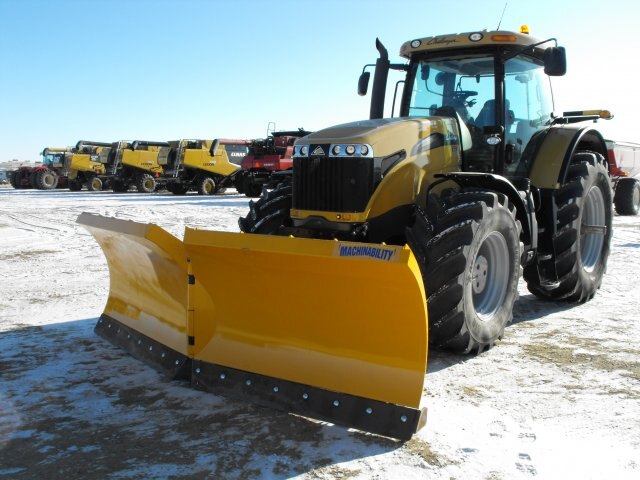

You'll appreciate Machinability's Power V-Plow with cutting-edge technology offering faster, safer snow removal. Our electronic Touch Button Controls provide infinite variable movement of the plow sections. Our innovative front mount design ensures level plowing at all times.
Cutting-Edge Design
By combining unsurpassed strength and weight saving construction, our multi-positional, hydraulic-powered plows are second-to-none. The aggressive 30 degree cutting-edge angle cuts hard packed snow with no down pressure and the 48" moldboard rolls snow easily-outplowing the competition.
Our leading-edge hydraulic valve and joy stick control are designed with all settings built in for maximum system efficiency including impact relief protection. Completely operational at the mere touch of a button. |
|

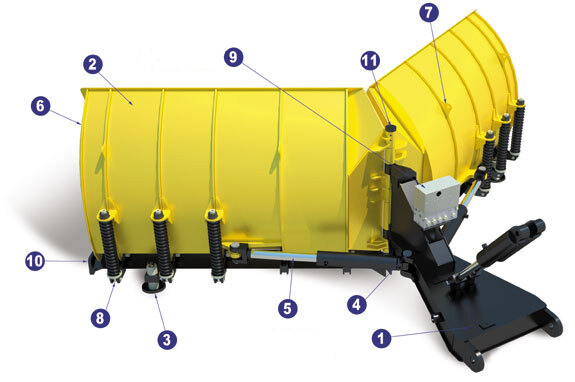

Series V-48
|
-
Versatile, reinforced, lightweight, fully boxed A-Frame specifically designed for your equipment.
-
Heavy-duty, lightweight ,double-walled moldboard with continuous welds inside and out.
-
Heavy duty wear shoes with optional high wear carbide.
-
All locking pins are hardened and fully greaseable.
-
Large hydraulic cylinders have forged clevis and 2" shafts with double plating. All components are fully serviceable for extended service.
-
Moldboard curvature and design eliminate snow/ice build-up while providing exceptional snow casting with less Horse Power and better fuel efficiency!
-
Support ribs provide extra strength and lightweight construction.
Lifting lugs allow for safe, easy handling.
-
Fully serviceable trip edge with compression springs.
-
A single pressure line operates the hydraulic valve and
10-function electronic joy stick control providing impact protection, free float and complete plow operation.
-
Wear resistant curb guides are attached to the corners of the plow's cutting edges.
-

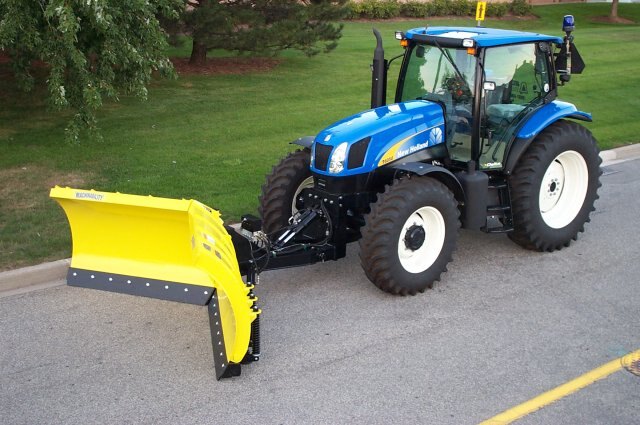

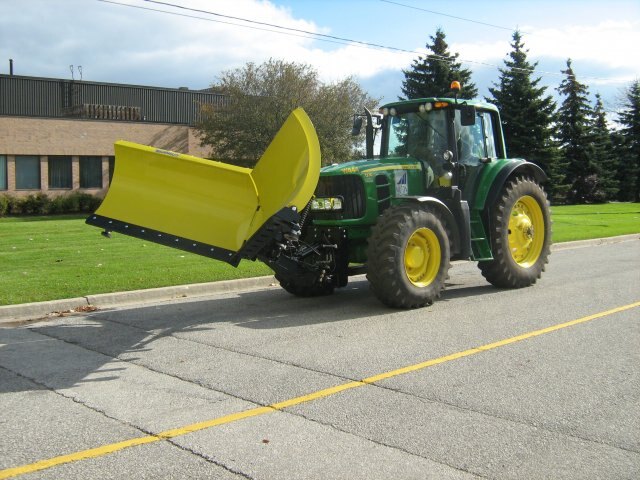

The hydraulic independent V-Plow sections are completely operational, moving a full 60 degrees of travel and come with trip-edge spring design, providing for smooth operation and maintenance.
-
Machinability will supply the right equipment for all your snow plowing requirements.

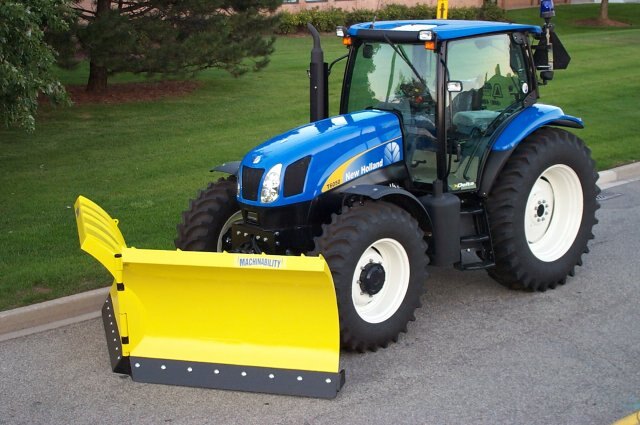

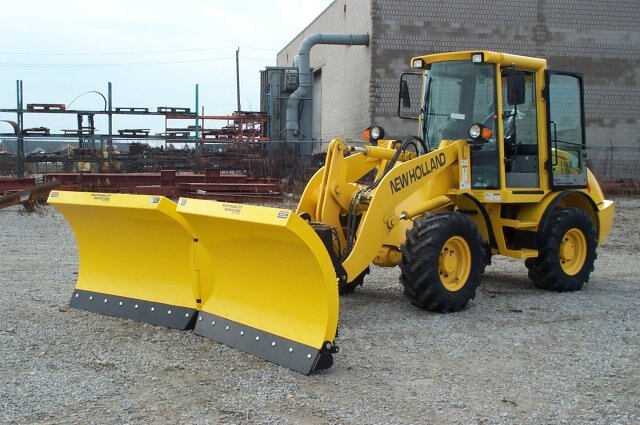

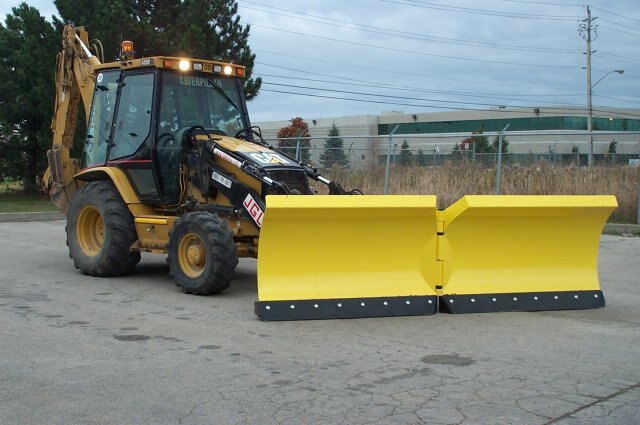

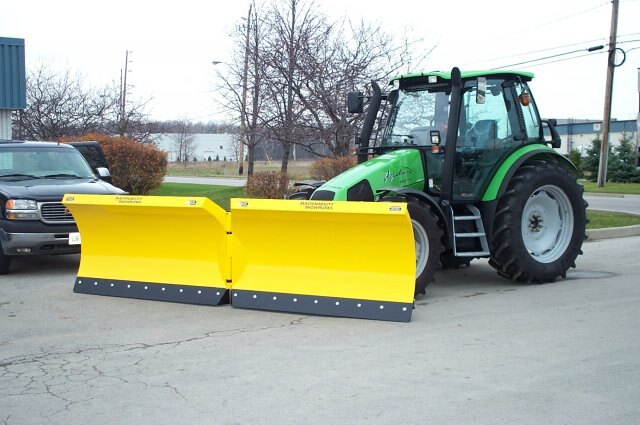

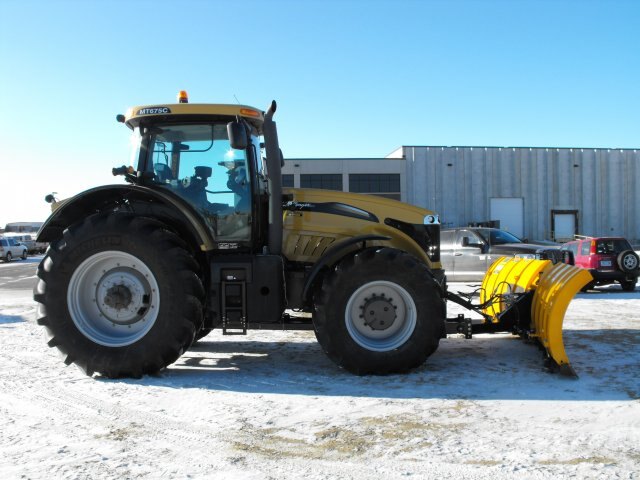

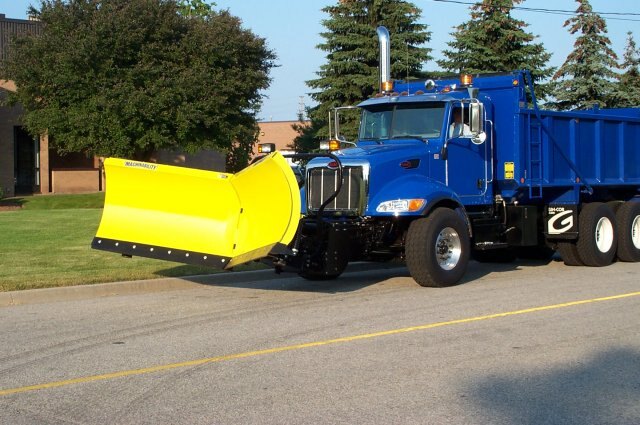

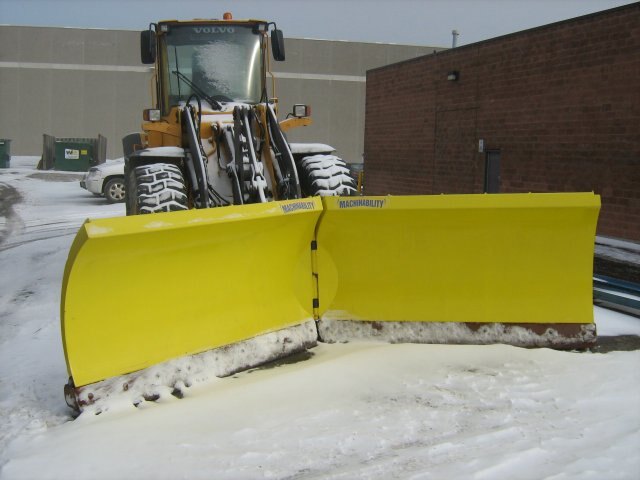

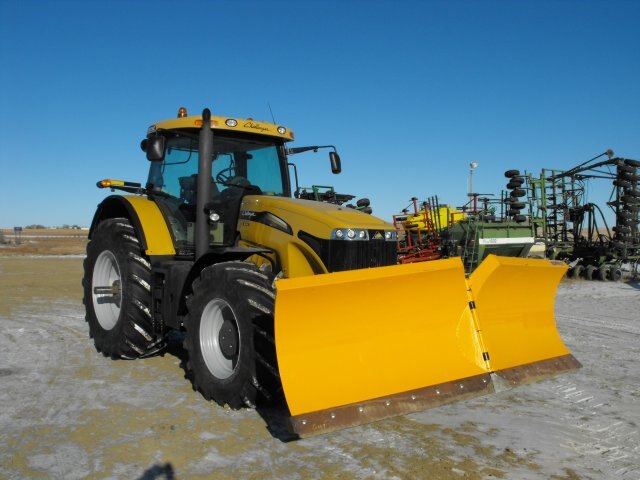

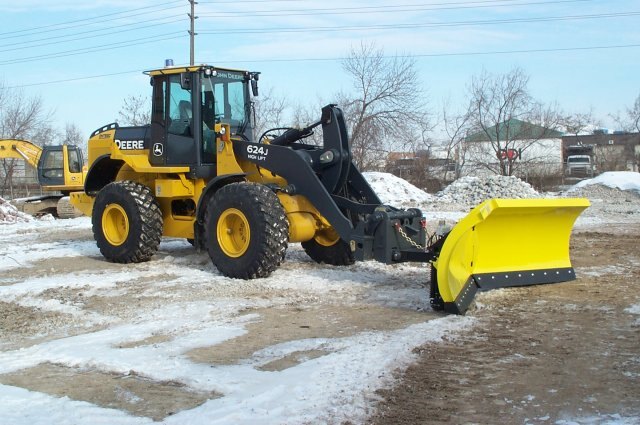

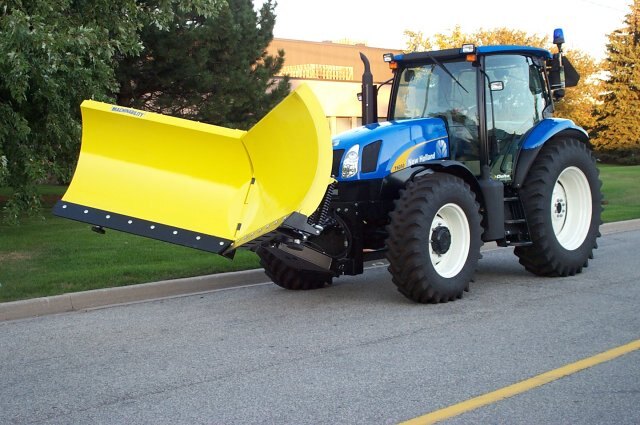

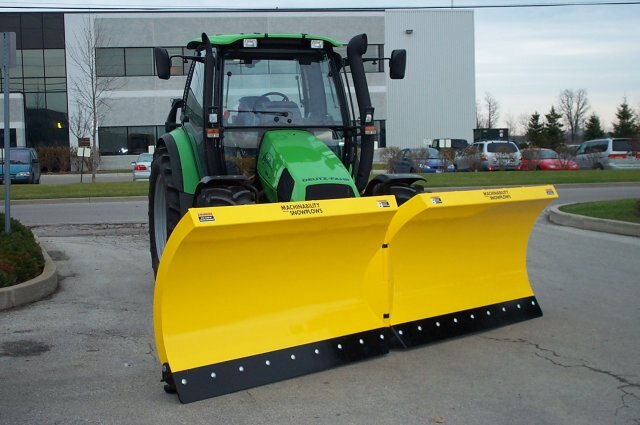

Agricultural Tractors · Loaders · Heavy Duty Trucks
|
Model
|
16V48
|
14V48
|
12V48
|
11V48 |
10V48 |
|
Plow width
|
16 ft
|
14 ft
|
12 ft
|
11 ft |
10 ft |
|
Overall height [inch]
|
48
|
48
|
48
|
48 |
48 |
|
Width - Straight [inch]
|
195
|
171
|
147
|
132 |
120 |
|
Width - Vee forward [inch]
|
165
|
144
|
124
|
112 |
102 |
|
Width - Vee back [inch]
|
172
|
151
|
131
|
119 |
107 |
|
Width - Angled
|
169
|
148
|
128
|
116 |
105 |
|
Cutting edge vertical angle
|
30
|
30
|
30
|
30 |
30 |
|
Cylinder bore [inch]
|
3
|
3
|
3
|
3 |
3 |
|
Trip springs
|
8
|
6
|
6
|
4 |
4 |
|
Forward vee-angle [deg]
|
30
|
30
|
30
|
30 |
30 |
|
Back vee-angle [deg]
|
30
|
30
|
30
|
30 |
30 |
|
Weight (Approx.)
|
2330
|
2100
|
1870
|
1750 |
1640 |
|
Swivel plate angle [deg]
|
14
|
14
|
14
|
14 |
14 |
|
Cutting edge vertical drop/raise at outer edge
|
24
|
21
|
18
|
16.5 |
15 |
|
