INFORMATION DETAILS
ID: 13823545
|
Year: 2018
|
Make: Atlas Copco
|
Model: BMK 91RS
|
Type: New
|
| MSRP:
N/A |
Engine Size - cc: N/A |
SELLER DESCRIPTION
|

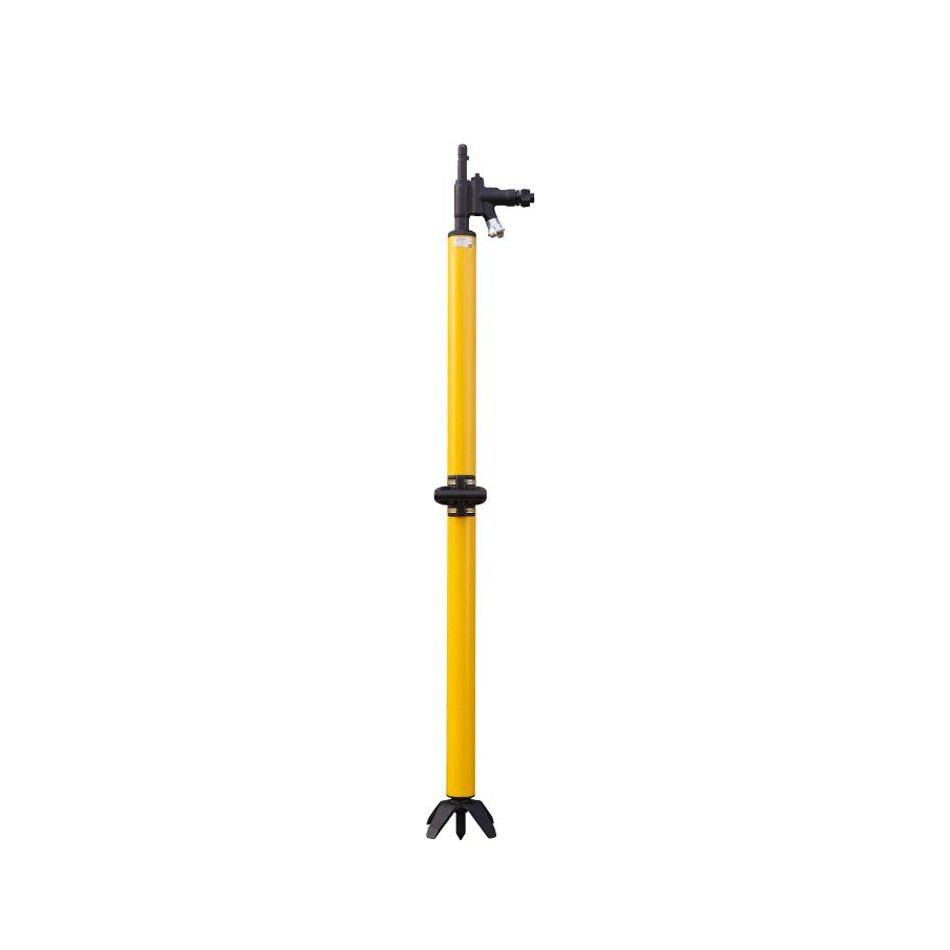

BMK 91RS
Pusher leg
|
|
Certification
ATEX-approved steel leg; required with BBD 94 WS for fully ATEX-certified package
|
|
|
|
Features
|
|
|
|
Double action
Pusher legs are double-acting, they push out and pull back in.
|
|
Quick connect
When time is short, simple connection means money saved.
|
|
Easy reach
The feed control is placed on the pusher leg, which makes it easy to reach.
|
|
|
|
Pusher legs your best legs
|
|
|
These pusher legs were made with an aluminium alloy that was first developed for use in spacecrafts. They’re strong and feature a large piston diameter for high feed force. The simple and robust design makes operations reliable and promise minimum maintenance time.
|
|
|
|
Technical specifications
|
|
|
|
Technical details |
|
|
|
Pusher leg type
|
Single telescope |
|
Feeding length
|
1 300 mm |
|
Length extracted
|
3 030 mm |
|
Length retracted
|
1 730 mm |
|
Weight
|
24 kg |
|
Piston diameter
|
67 mm |
|
Part number (not sold within EU)
|
8321 0104 27 |
|
|
|
|
Suitable for rock drill
|
|
|
|
Pusher leg rock drill
|
BBD 94WS ATEX |
|
