INFORMATION DETAILS
ID: 13454576
|
Year: 2018
|
Make: Reist
|
Model: Roto Rake
|
Type: New
|
| MSRP:
N/A |
Engine Size - cc: N/A |
SELLER DESCRIPTION
|
A heavy duty, time-saving ball diamond groomer

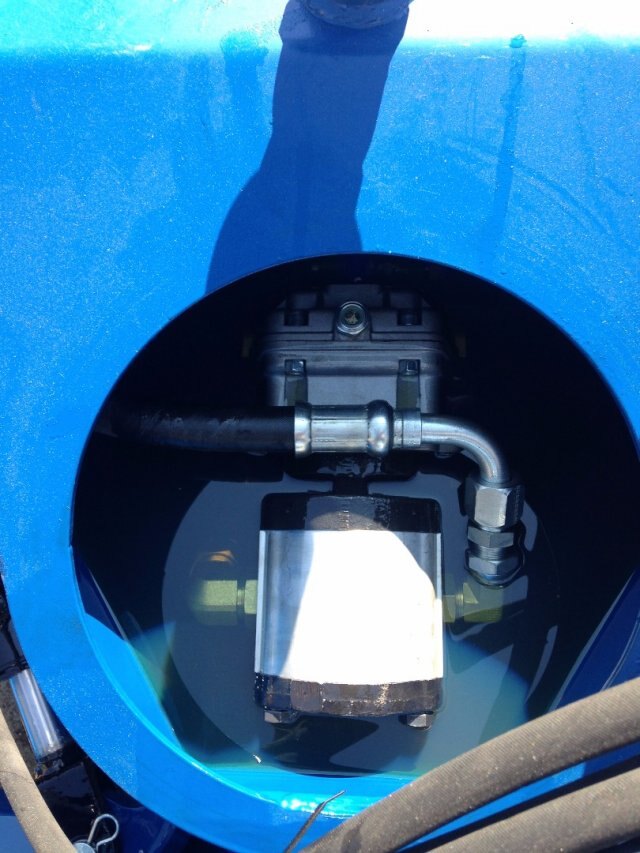

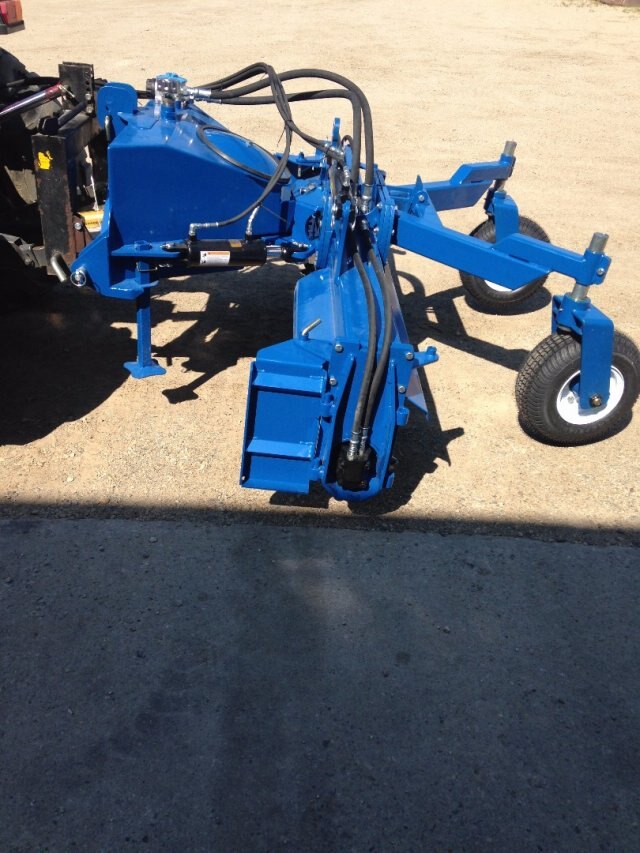

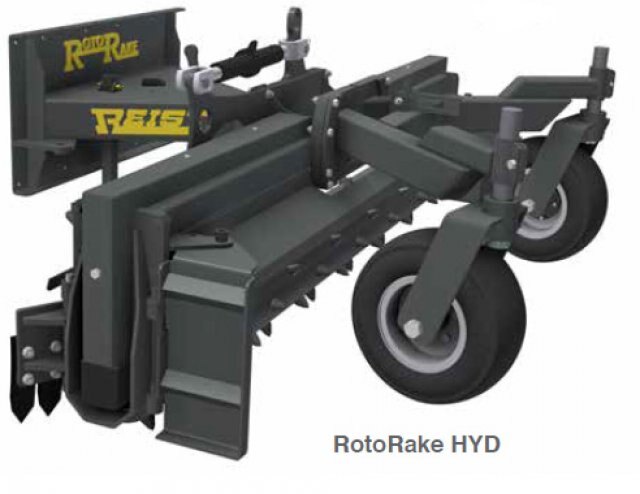

The RotoRake’s (Hyd) bi-directional rotor allows for operation in both directions. Features a 25 degree angle and 28 degree tilt for easy swaling and ditching. Oscillating gauge wheels lock in level position for the (P.T.O.) three point hitch use. Dual-motor design delivers 40% more torque and eliminates outside bearings and chains.

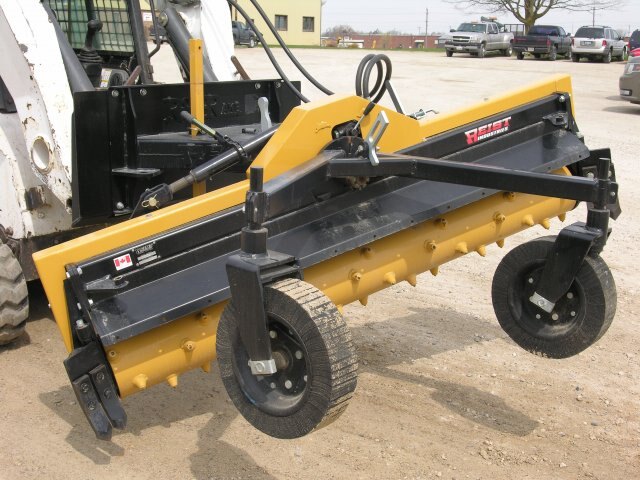

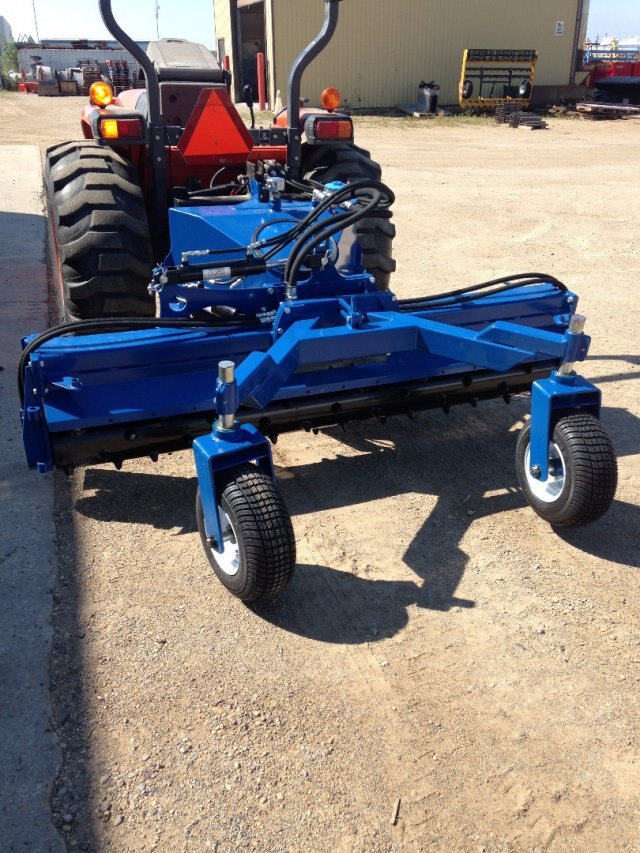

The RotoRake also features a floating rotor design with road-grade mini carbide teeth, ditch cutters and side shields. The RotoRake can be used on a three point hitch or skid steer hitch systems.
|
|
Specifications
|
-
Working widths of 72" or 84"
-
Height: 30"
-
Weight: 72": 1100 lbs, 84": 1200 lbs
-
Rotor Torque @ 2500 PSI: 550 ft-lbs
-
Hyd GPM range: 20-30
-

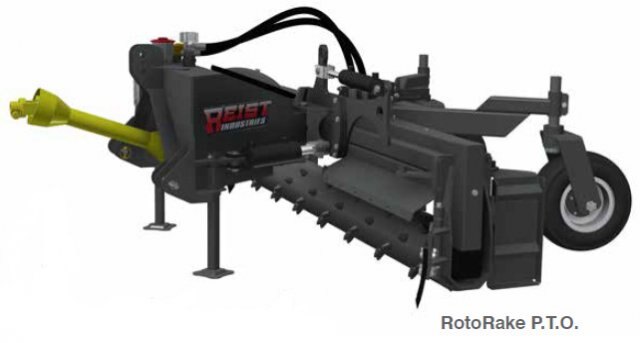

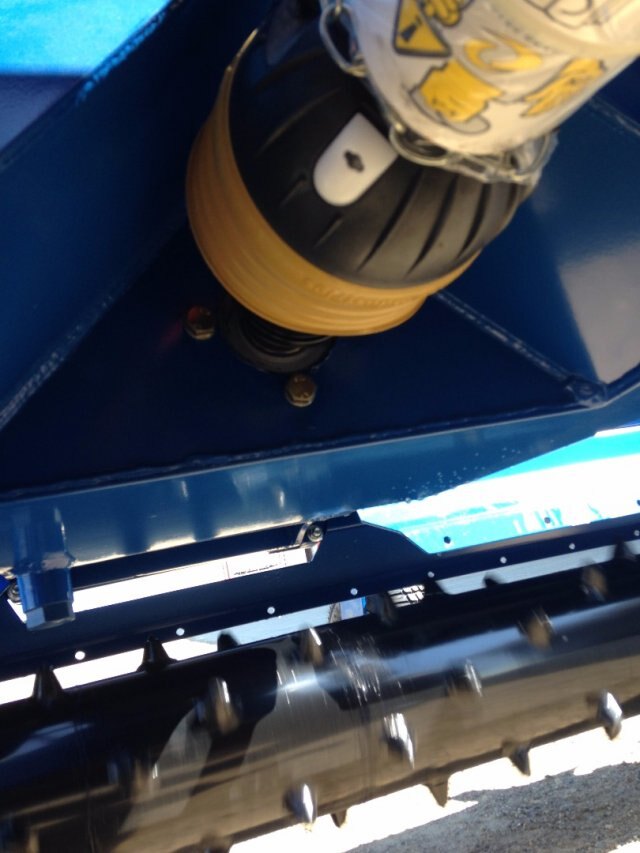

(P.T.O.) 540 RPM, CAT I and CAT II Hitch
-
3000 PSI maximum
-
Rotor Speed: 300-600 RPM
|
|
OPTIONS
|
Side Cutters
-
Pin on front or rear depending on desired direction of travel
|
 Side Shields
-
Pin on front or rear depending on desired direction of travel
-
Box-grading application
|
 Remote-Controlled Hydraulic Kit
-
Six function electric controls required: Rotor FWD/ REV, Angle Left/Right, Tilt Up/Down
-
Holding valves with cross line protection on angle and tilt cylinders
-
Anti-cavitation protection on rotor motors
|
 CAT I Hitch
|

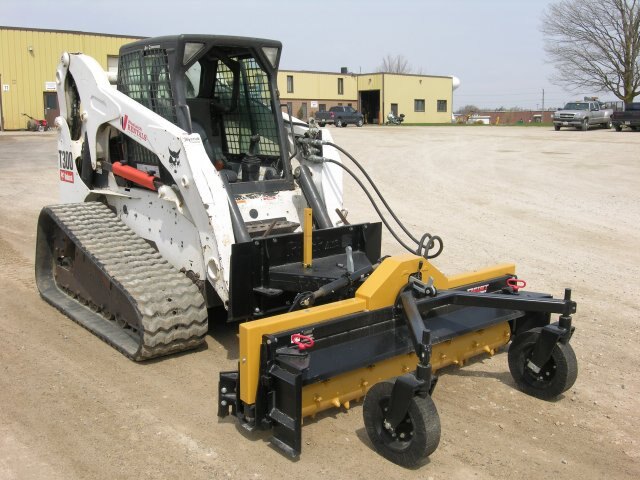

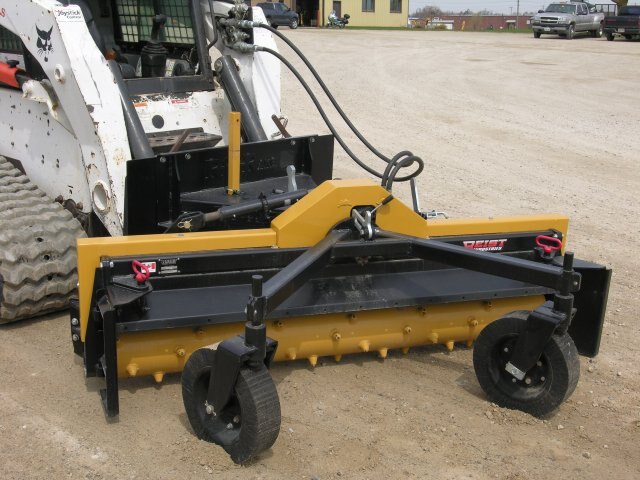

 Universal Skid Steer Hitch
|
|
|
