INFORMATION DETAILS
ID: 13750391
|
Year: 2017
|
Make: Bridgeview
|
Model: Pulldozer PD 1220 Scraper Pan
|
Type: New
|
| MSRP:
N/A |
Engine Size - cc: N/A |
SELLER DESCRIPTION

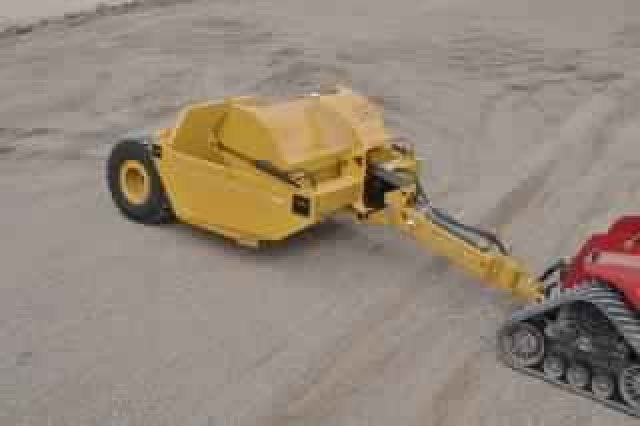

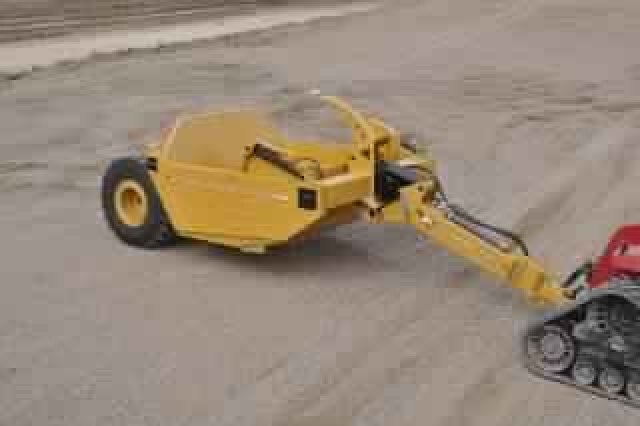

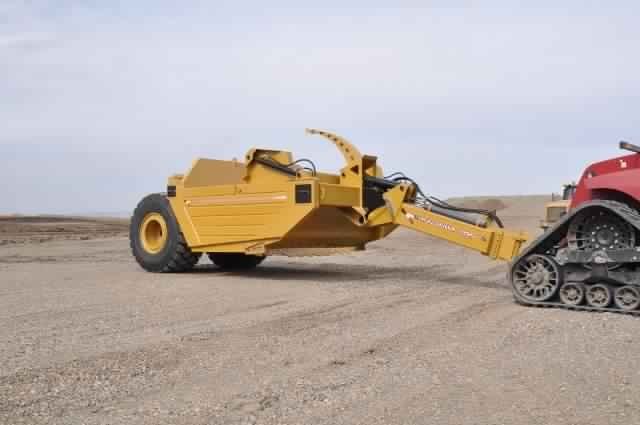

Now Available 2017, the 20-yard Pulldozer 1220 Ejector-Style Land Scraper!
No piece of equipment takes as much abuse as a scraper; big rocks and hard pulling test these earth-movers during every moment of their operation.
With this philosophy in mind, Bridgeview designed every aspect of the 1220 for absolute dependability.
Strategically placed high-strength and hardened steel is meant to last for the life of the machine. The high-backed ejector plate prevents rocks from wedging between the tires and frame.
Clever hydraulic hose and cylinder concealment and a clean, smooth design prevent protect the most sensitive components of the scraper. |
|
Standard Features
|
-
The 1220 features a 20-yard hopper and 12′ cutting width. The high-backed ejector helps prevent rocks from jamming between the frame and tires and protects the cylinder compartment from material buildup.
-
The standard GPS tower sits directly over the blade, meaning that only an elevation correction in software is needed. The tower is easily removed to accommodate excavator filling if desired.
-
The standard nitrogen-filled hydraulic dampener provides a better ride for the operator and smoother cylinder function.
|
-

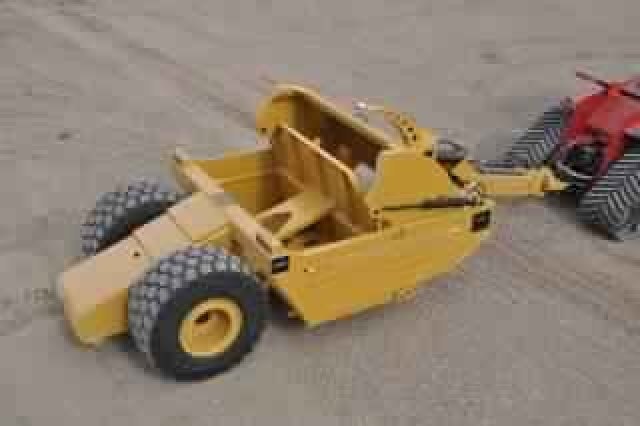

Twin 875/65R29 tires reject mud buildup better than 4- or 6-wheeled scrapers. The 132″ outside tire width floats gives good stability on slopes and uneven ground. The tail section’s removable panel allows easy pressure-washing of the cylinder compartment. The open tail bottom permits total cleanout.
-
The heavy-duty 3″ ejection cylinder pushes the ejector plate slightly past the blade edge for total hopper cleanout. Ultra-High Molecular Weight Polyethylene (UHMW-PE) bearing surfaces reduce metal-on-metal sliding contact and resist jamming by gravel. Ejector/apron sequencing is automatic on one remote.
-

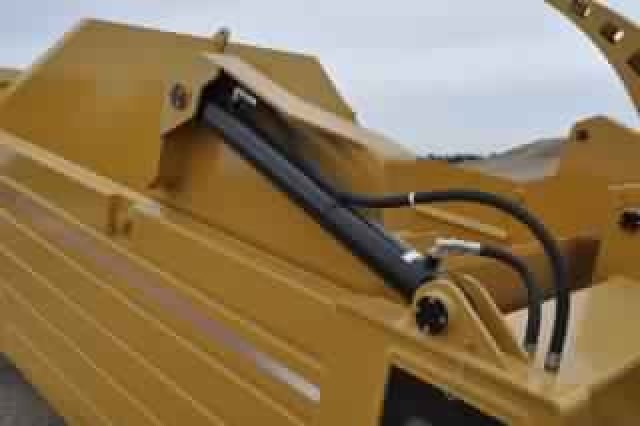

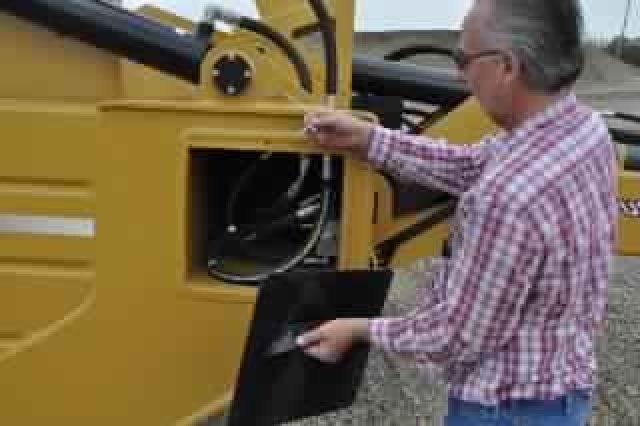

Twin 2″ apron cylinders are shielded from rock impact yet remain accessible for quick inspections. The frame tubing access panels are easily removed for fast checks of the internally-routed hydraulics.
|
-

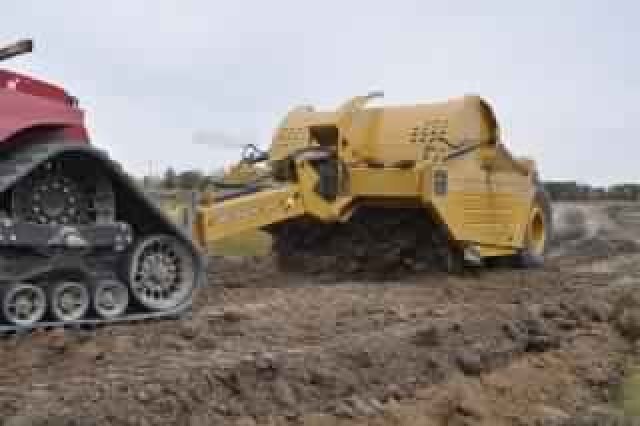

The standard replaceable dropped-center serrated blades pull the center of the 1220 deeper and more evenly into the ground. Straight blades are also available as standard.
-

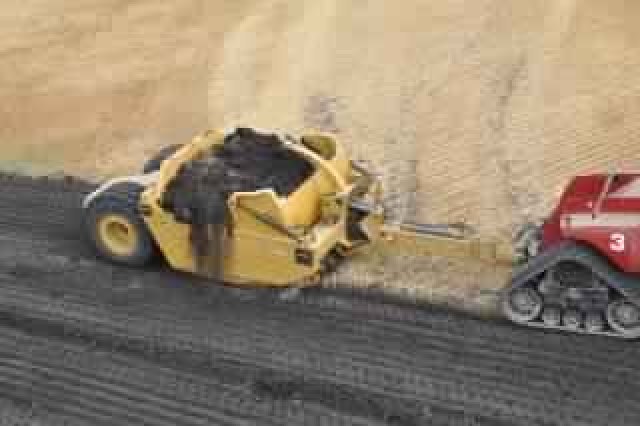

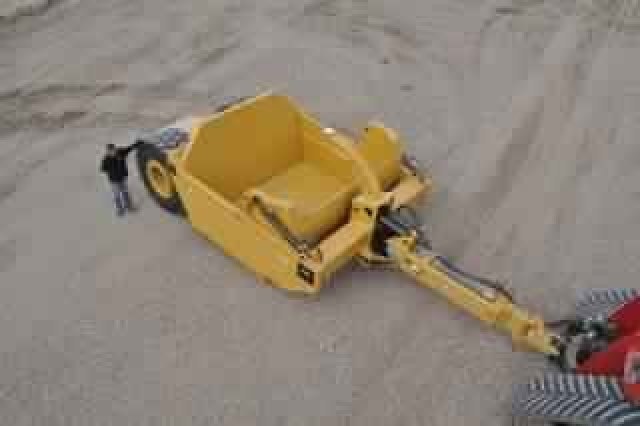

The strategically-placed hardened steel of the 20-yard hopper is protected by high quality powder-coat paint. The clean-faced internal design prevents snagging damage when ejecting big rocks or gravel.
-
Like all pins on the 1220, the 3-5/8″ cold-rolled lift pivot pin will withstand loads far exceeding those expected in the harshest operating conditions.
|
-
Standard 3/4″ Male Ag Tips (Pioneer Style) come installed. Two hydraulic remotes are required.
-

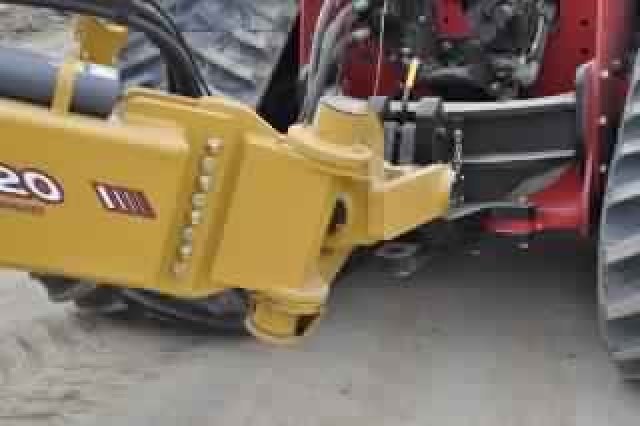

The six-way semi-mount provides a wide range of motion.
-

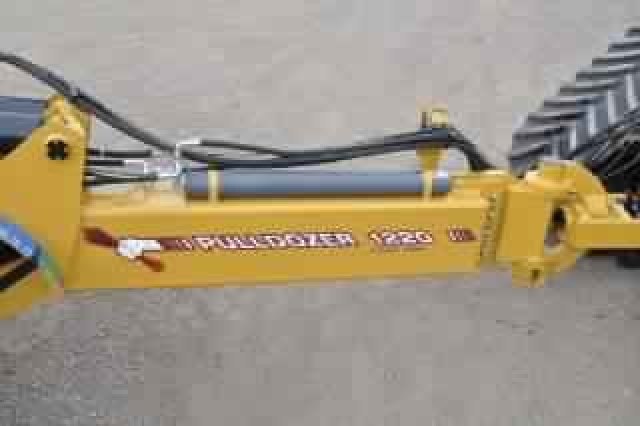

Unlike other scraper hitches, the standard 1220 hitch allows easy yoke connections while installed, saving significant time when changing implements.
|
|
Specifications
|
|
|
|
Pulldozer 1220 Land Scraper – Dimensions |
|
|
|
Recommended Tractor Power |
400+ hp |
300+ kW |
|
Approximate Dry Weight |
28,000 lbs |
12700 kg |
|
Overall Dimensions |
143-1/2″ Wide x 400″ Long |
3.64 m Wide x 10.16 m Long |
|
Turning Length (Tire Center to Hitch Pin) |
324″ |
8.23 m |
|
Outside Tire Width |
132″ |
3.35 m |
|
Height @ Max. Elevation (Approx.) |
GPS Tower Removed – 109″ (2.77 m) |
GPS Tower Installed – 142″ (2.72 m) |
|
Capacity – Struck |
14 yd3 |
10.7 m3 |
|
Capacity – Nominal |
20 yd3 |
15.3 m3 |
|
Capacity – Heaped |
22 yd3 |
16.8 m3 |
|
Bowl Internal Dimensions (Approx.) |
132″ Wide x 98″ Long x 50-1/2″ Deep |
3.35 m Wide x 2.49 m Long x 1.28 m Deep |
|
Unit Weight on Hitch |
Empty – 26% |
Heaped – 28% |
|
|
|
|
Transportation |
|
|
|
Lights and Marking |
7-Pin Male Trailer Plug |
Red/Amber Lights & Decals, SMV Sign |
|
Hitch Style |
6-Way Semi-Mount |
|
Hitch Articulation |
35° Left/Right of Center |
23° Up |
|
Tires |
2 x 875/65R29 |
|
Tire Capacity (Each) |
34,200 lbs |
15500 kg |
|
|
|
|
Blade |
|
|
|
Blade Options (Either Standard) |
Serrated Blade, Hardened, Dropped Center |
Straight Blade, Hardened, Dropped Center |
|
Blade Width |
131-1/2″ |
3.34 m |
|
Blade Angle |
30° |
|
Number of Blade Sections |
Three – Left, Right, and Center (All Replaceable) |
|
|
|
|
Hydraulics |
|
|
|
Hydraulic Remotes Needed |
2 (One for Tilt, One for Ejector/Apron) |
|
Ejector/Apron Sequencing |
Automatic on One Remote |
|
Hydraulic Dampening |
Nitrogen-Filled Piston Accumulator |
|
Apron Cylinders |
2 x 32 x 4 (Qty. 2) |
|
Lift Cylinders |
3 x 20 x 6 (Qty. 2) |
|
Ejector Cylinder |
3 x 60 x 5 (Qty. 1) |
|
Hydraulic Fitting |
3/4″ Standard Male Ag Tip (Pioneer Tip) |
|
|
|
|
Other features |
|
|
|
Removable GPS Tower |
Centered 115-1/2″ (293 cm) Over Blade |
7″ x 7″ (17.8 cm x 17.8 cm) for Receiver |
|
Finish |
Powder Coat Paint |
|
