Lemken Rubin 12 Contact for Price Back to Search Results  register
  send to a friend        Ship this Item         Apply For Financing         print this Ad         Can't find it?
No image available for this ad listing image listing image listing image listing image listing image listing image listing image listing image listing image listing image


Documents:



Videos:
Click to view larger photos


INFORMATION DETAILS

ID:  13893026

 Year:  2018
Make: LEMKEN

 Model: Rubin 12
Type: New
MSRP:  N/A Engine Size - cc: N/A



SELLER DESCRIPTION

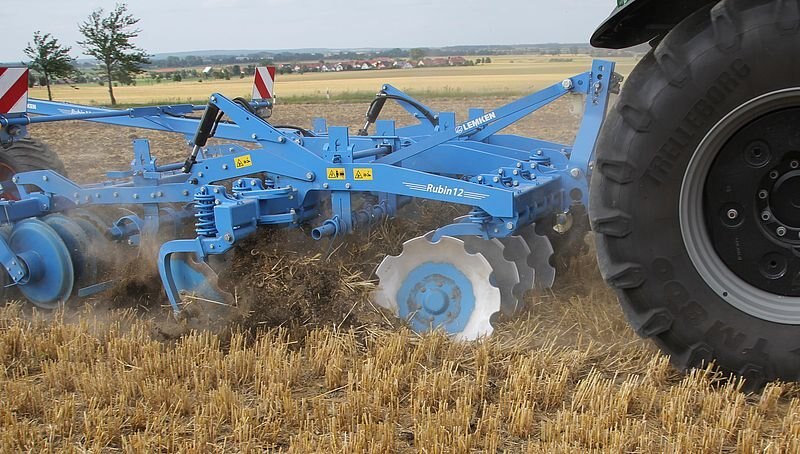

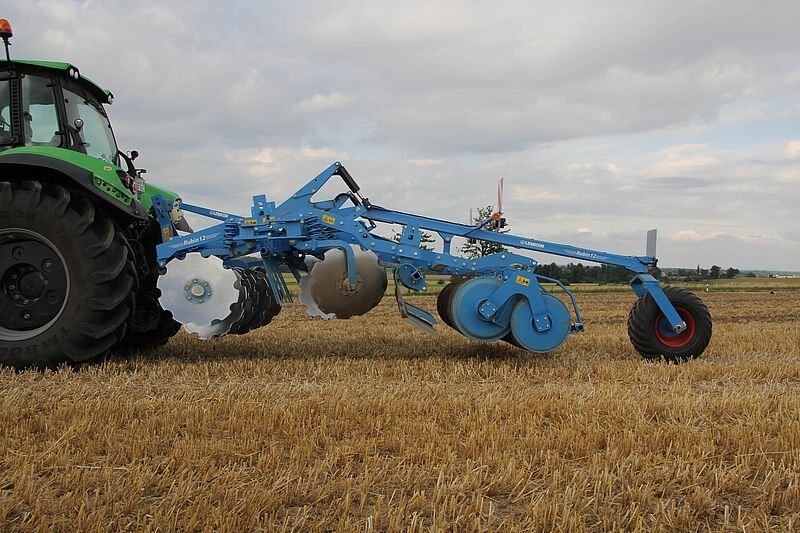

Rubin 12

Compact disc harrow with deep impact

With the Rubin 12, LEMKEN’s range of compact disc harrows includes an implement that can operate at the same 20 cm working depth as a cultivator. The Rubin 12 is therefore suitable both for stubble cultivation and for primary soil tillage, even in very heavy soil conditions.

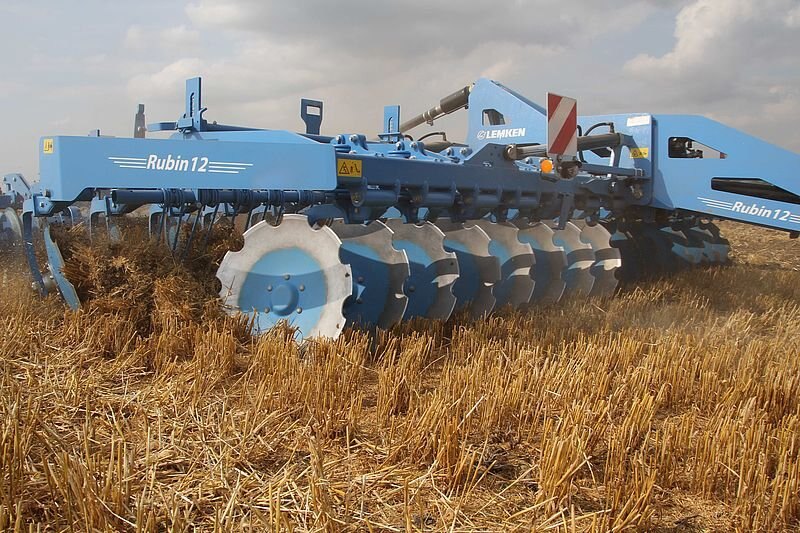

  • Two rows of serrated concave discs with a diameter of 736 mm produce intensive mixing and crumbling.
  • The symmetrical arrangement of the discs in each row enables working without lateral pull, even at high driving speeds.
  • The 20° angle of the discs to the soil and the 16° angle to the direction of travel ensure optimum penetration and enable cultivation across the full width from a working depth of 7 cm.
  • The legs are specially curved and coiled and thus provide maximum clearance between the discs. This prevents blockages, along with the slight offset of the middle discs.
  • High speeds of travel at reduced slip result in lower fuel consumption and a higher acreage performance.
  • An impact harrow behind the first row of discs produces intensive mixing and crumbling, while a levelling harrow behind the second row distributes and levels the soil optimally.

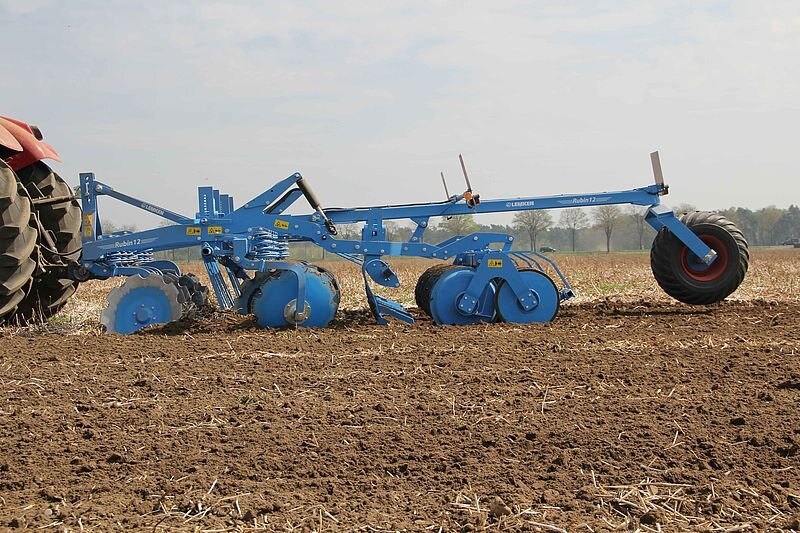

  • In the mounted version, the Rubin 12 can be equipped with a Uni wheel, which transfers loads to the front axle when the implement is raised. This version includes a novel semi-mounting system that does not require an additional control unit.


  Technical Data



Rubin 12

 Rubin 12/300 U Rubin 12/350 U Rubin 12/400 U
Body Spacing 300 350 400
Tractor output (HP) 135 - 240 158 - 280 180 - 320
Tractor output (kW) 99 - 177 116 - 206 132 - 235
Weight (kg) 2046 2141 2616
Discs 18 18 22
Discs diameter 736 736 736



Rubin 12 KUA Rubin 12/400 KUA Rubin 12/500 KUA Rubin 12/600 KUA Rubin 12/700 KUA
Body Spacing 400 500 600 700
Tractor output (HP) 180 - 320 225 - 400 270 - 480 315 - 560
Tractor output (kW) 132 - 235 165 - 294 199 - 353 232 - 412
Weight (kg) 4402 5257 5732 6630
Discs 22 30 34 42
Discs diameter 736 736 736 736


   Standard Equipment

Rubin 12

  • Ohne Walze
  • Unterlenkeranschluss Kat. 3 (wahlweise Kat. 3N=L2 Z3 oder 4N=L3 Z4)
  • Rahmenhöhe 80 cm
  • Integrierter Prallstriegel hinter erster Scheibenreihe, Nivellierstriegel hinter zweiter Scheibenreihe
  • Einklappbare äußere Hohlscheiben
  • Hohlscheiben 736 x 6 mm gezackt mit automatischer Überlastsicherung
  • Seitenschilde

Rubin 12 KUA

  • Ohne Walze
  • Ohne Beleuchtungsanlage
  • Ohne Bremsanlage
  • Integrierte Aufsatteleinrichtung
  • Achse mit Radgröße 550/45-22.5
  • Unterlenkeranschluss Kat. 3 (wahlweise Kat. 3N=L2 Z3, 4N=L3 Z4 oder 4=L4 Z4)
  • Rahmenhöhe 80 cm
  • Integrierter Prallstriegel hinter erster Scheibenreihe, Nivellierstriegel hinter zweiter Scheibenreihe
  • Hohlscheiben 736 x 6 mm gezackt mit automatischer Überlastsicherung
  • Hydraulische Transportverriegelung

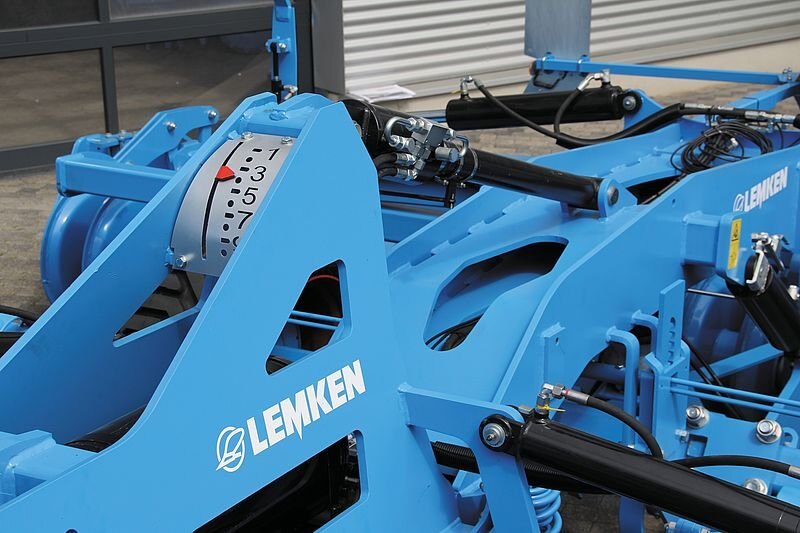

  • Hydraulische Arbeitstiefeneinstellung
  • Seitenschilde
