INFORMATION DETAILS
ID: 13355408
|
Year: 2015
|
Make: Futtura
|
Model: MCB2 Machine Control Boxes
|
Type: New
|
| MSRP:
N/A |
Engine Size - cc: N/A |
| Dimensions (LxWxD): | 7.0 x 5.3 x 4.8 in. - (178 x 134 x 120 mm) |
| Operating Temp: | -4° F to 140° F - (-20° C to +60° C) |
| Accuracy Settings: | 16 total 0 to 1.50 inch (38mm) 0.10 inch (2.5mm) increments |
| Display LCD: | Grading 5 mm (3/16'') - Excavate 6 mm (1/4'') |
| Operating Voltage: | 10 to 30 Volts DC - reverse polarity protected |
| Electrical Connection: | standard military type |
| Valve Compatibility: | Proportional Time (On/Off), Proportional Current, Proportional Voltage |
| Maximum Current: | 5 Amps per coil |
| Remote Switch Option: | Auto/Manual - Raise/Lower switches |
| Weight: | 5 lbs. (2.25 kg) |
SELLER DESCRIPTION
Futtura Blade Control MCB1 or MCB2 single control box and MCB3 dual control box offer automatic hydraulic control versatility. Futtura MCB Control Box
The entry-level model MCB1 control box works with proportional time (bang-bang) valves only and is designed to work with the MCR1 receiver for slower moving applications such as trenchers and tile plows.

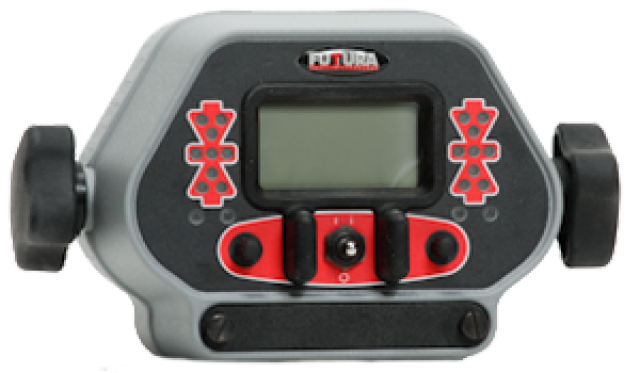

The cab mounted MCB2 Control Box has 16 on-grade accuracy settings from 0 to 1.5 inches (38 mm). These provide optimum accuracy selections for various types of machinery and jobsite requirements. The MCB2 works with proportional time, proportional current and proportional voltage hydraulic valves and is designed to be used with the MCR2E, MCR2 and MCR3 receivers.
The MCB3 Dual Control box is designed to control both the lift and tilt of a dozer blade or two independent lift cylinders of a motorgrader blade for precise slope control applications.. It is compatible with proportional time, proportional current and proportional voltage hydraulic valves and is designed to be used with the MCR2E, MCR2 and MCR3 receivers. |
