INFORMATION DETAILS

ID: 13645195	Year: 2017
Make: Case IH	Model: HDX10P
Type: New
MSRP: N/A	Engine Size - cc: N/A

SELLER DESCRIPTION

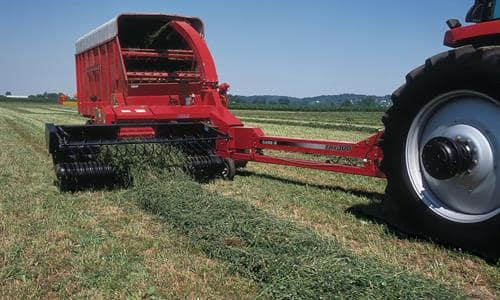

Pull-Type Forage Harvester

Heavy-duty Gauge Wheels and a Floating Auger

Built compact for easy maneuvering in hilly terrain and smaller fields:

• Ground-hugging HDX10P/HDX20P windrow pickups gather the entire crop.

• Heavy-duty gauge wheels handle rough ground

• Wheels help the pickup rise over swells and into dips without gouging

• Open end pulls in wide windblown windrows

• Two models available

• 76.5 in or 92 in (1.94 mm or 2.34 mm) models, tine to tine

• Closely spaced pickup tines flex to gather the entire windrow

• Floating auger handles heavy crop conditions

• Retractable finger feed auger feeds crop smoothly

• Auger reverses with feedrolls to easily clear plugs in case of overload

Powerful Blower Moves Quickly

A powerful 1,000-rpm blower moves crops quickly to fill wagons and trucks fast. Works efficiently regardless of whether you’re working in wet, heavy hay or an easy-to-blow crop like corn.

Stop Feedrolls Before Metal Can Damage the Cutterhead

How it works:

Detector stops feedrolls within a fraction of a second — before metal can damage the cutterhead.

• The sensor and electromagnet in the front lower feedroll emits a constant magnetic field between the two stainless-steel lower feedrolls.

• A light and horn alert you when metal is detected, and a signal is sent to the solenoid to stop the feedrolls.

• Power is shut off to an electric clutch on the reversing gearbox that shifts to neutral and stops the power to the feedroll drive.

• The feedroll control switch allows you to back the material out of the feedrolls.

• After metal is removed, the detector resets automatically.

Maximize Feed Quality

The processor maximizes feed quality in corn silage, saving time and cost by chopping and processing in one operation. By removing the material baffle and the processor drive belt, you can chop haylage.

Crop coming from the cutterhead is propelled between two 8 in (203-mm)-diameter fluted rolls. The top roll turns 15 percent faster than the bottom roll , providing the scuffing action necessary to crack kernels and break cob pieces . This results in:

• Better fermentation

• More effective fiber in the ration

• Feed that’s easier for livestock to digest

HDX10P Highlights

Heavy-duty gauge wheels handle rough ground while ground-hugging HDX10P windrow pickups (76 in) gather the entire crop.

Quick Specs

Windrow Pickups: 76 in (1.9 m )

Cutterhead: 12-Knife

PTO Required: 180 hp (134.2 kw)
