John Bean ATC 1000 Contact for Price Back to Search Results  register
  send to a friend        Ship this Item         Apply For Financing         print this Ad         Can't find it?
No image available for this ad listing image


Documents:





INFORMATION DETAILS

ID:  13789275

Year:  2018

Make: John Bean

Model: ATC 1000

Type: New

MSRP:  N/A Engine Size - cc: N/A

M/D Tool Technology:   M/D tool & bead lever
Clamping System:    Automatic pilot hole
Capability:   70 kg
Power Supply:   230V 1Ph 50/60Hz
Dimensions LxWxH:   51'' x 73'' x 89''
Net Weight:   2050 lbs
Wheel Lift:   Standard
Tool vertical Positioning:   Pneumatic
Toolbox:   Standard


SELLER DESCRIPTION

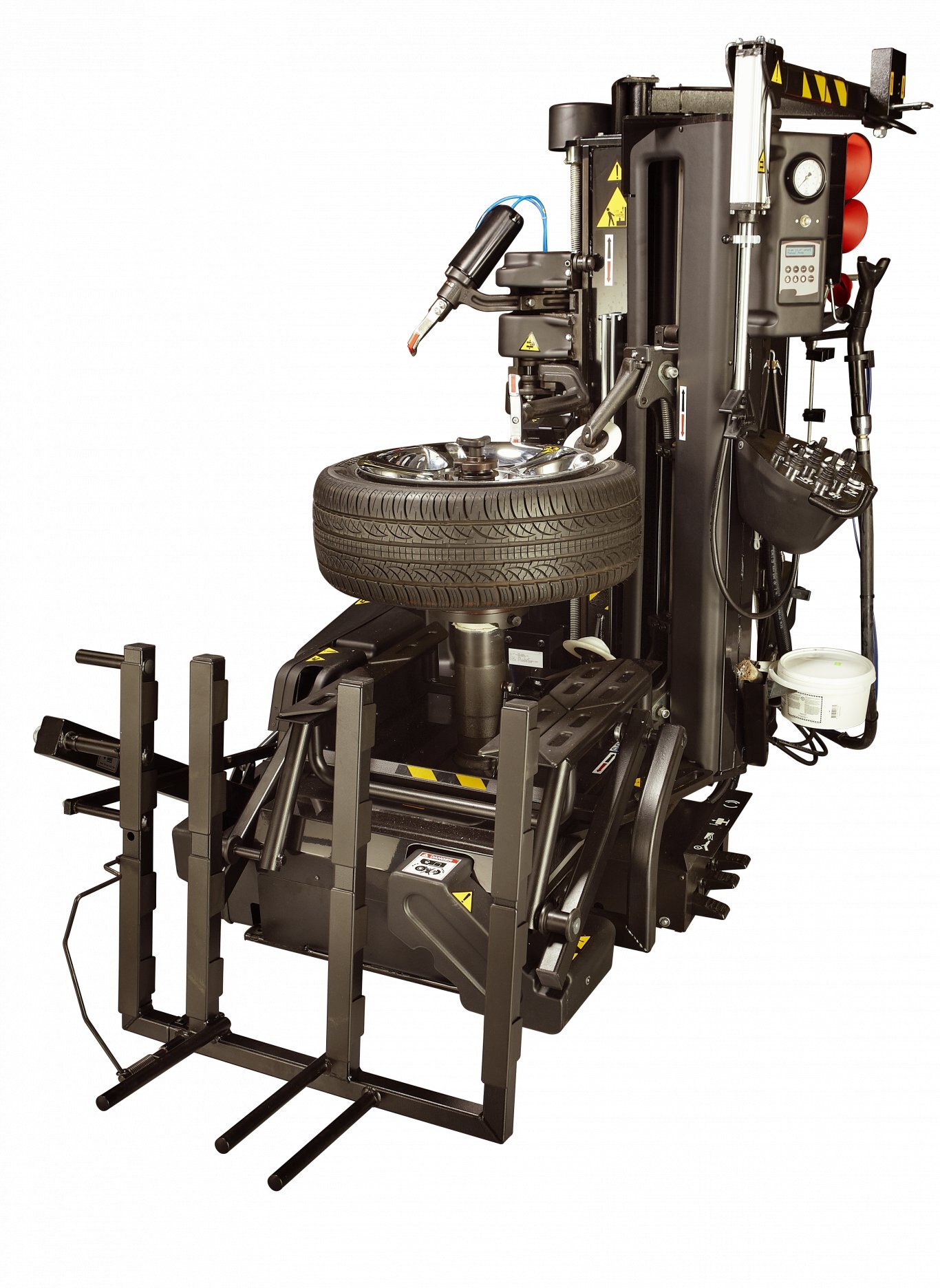

ATC 1000

Automatic Tire Changer

PRODUCT DESCRIPTION

The ATC 1000 is an automatic tire changing system that measures tire diameter using laser technology. It precisely profiles the wheel and positions the tire for hydraulically-driven dual bead breaking. Precise motor controls remove the tire from the wheel.
  • Part Number:  EEWH536C

  • Do No Harm™ - Precise tool control avoids damage to expensive alloy wheels, protecting your revenue and ensuring customer satisfaction.

  • Integrated Bead Pusher - Integrated bead pusher assists in the mount/demount process of the upper bead.

  • Center-Post Hydraulic Clamping - Center post wheel clamping provides easy and precise wheel mounting and prevents rim edge contact with the mount/demount tool.

  • Integrated Bead Breaker -  Servo driven upper and lower bead breakers are automatically positioned.

  • Smart Vision™ Wheel and Tire Laser Profiling - Automatic laser measurement of the wheel edge. Assures precise tool positioning to speed tire removal and installation reducing the opportunity for damage.

  • Intelligent Wheel Lift - Reduces risk of wheel damage as well as technician fatigue and the opportunity for injury.

 FEATURES
Wheel Lift
feat-wheellift-quadriga

The ergonomic wheel lift reduces fatigue on the operator and increases productivity
Automatic M/D Cycle
feat-automaticdemountingmountingcycle

Facilitates all mounting and demounting operations. It makes operations with run-flat tires and UHP tires with ease.
Center Clamp
feat-centreclamp

The center-clamp design has numerous benefits: most important is the drastically reduced risk of damage and that there are no restrictions of the turntables with clamping jaws.
Bead Pusher
feat-beadpressure-quadriga

Puts the bead in the drop center for a gentle mounting and demounting.
