INFORMATION DETAILS
ID: 14128761
|
Year: 2018
|
Make: Schaffer
|

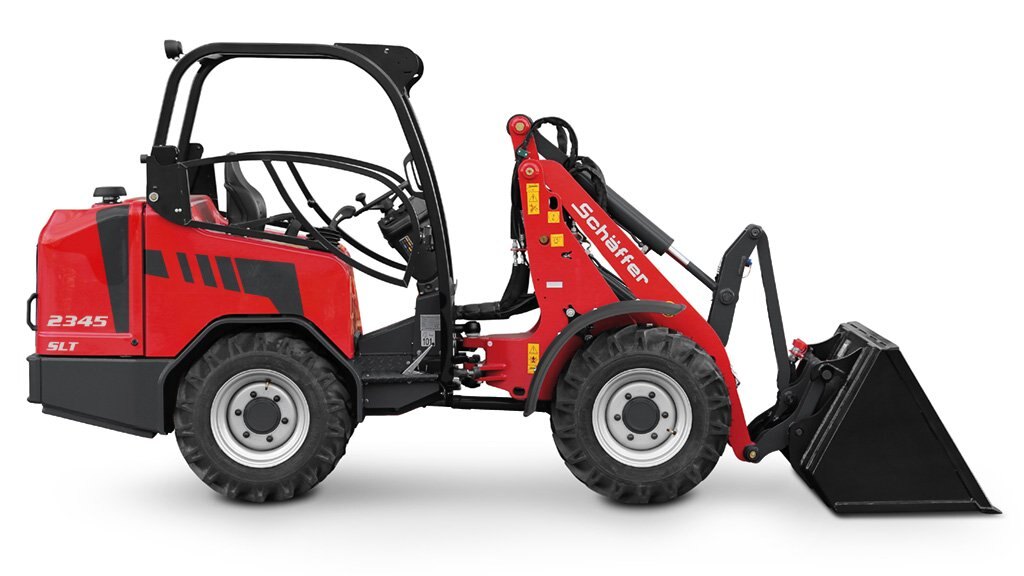

Model: 2345 SLT
|
Type: New
|
| MSRP:
N/A |
Engine Size - cc: N/A |
| Diesel engine: | Kubota diesel engine, 4 cylinders, water-cooled |
| Output: | 33 kW (45 HP) |
| Width: | 1020 mm - 1570 mm |
| Lifting capacity: | 1700 kg |
| Height protection roof: | from 1950 mm |
| Length with standard bucket: | 4025 mm |
| Lifting height (tool pivot): | 2880 mm |
| Working weight protection roof: | 2380 kg |
| Turning radius inside: | 870 mm |
| Tipping height (bottom edge of bucket): | 2045 mm |
SELLER DESCRIPTION
Compact loaders
The compact class is one of the most successful series ever built by Schäffer. They have been specifically developed for use in confined spaces. No compromises were, however, made as regards reliability and ergonomics. A wide range of equipment and attachments made the machines extremely versatile. |
|
Standard equipment
|
-
Special low construction design
-
Kubota Turbo diesel engine, 4 cylinders, water-cooled, 33 kW (45 HP)
-
Hydrostatic four wheel drive with automotive control
-
Tyres 10.0/75-15.3 AS offset +40 (height 1.98 m)
-
Genuine Schäffer axle
-
Combined oil cooler
-
Multiple disk brake, maintenance free; service and parking brake
-
Maintenance free articulated pendulum joint
-
Restraining system for protection roof
-
1 x LED working headlight front
-
Parallel lift
-
Working hydraulics: 42 l/min, optional 51 l/min.
-
Adjustable steering column
-
Hour meter, fuel control lamp and temperature indicator
-
Rear weight end plate
-
Quick-change frame SWH with hydraulic tool lock
|
