Item Details

ID: 13651443
Make: Farm King
Type: New

Year: 2017
Model: Conventional Auger - CX Series

Item Description

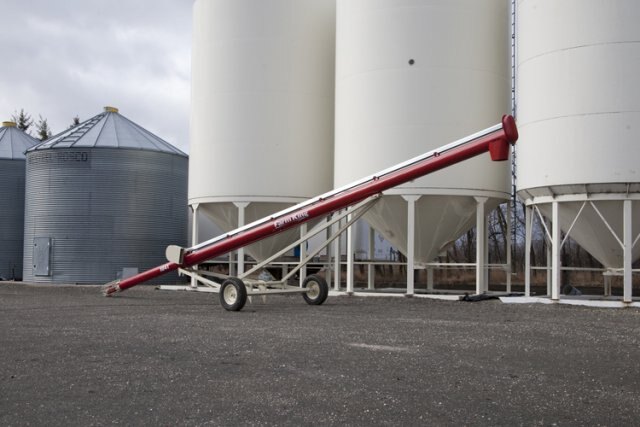

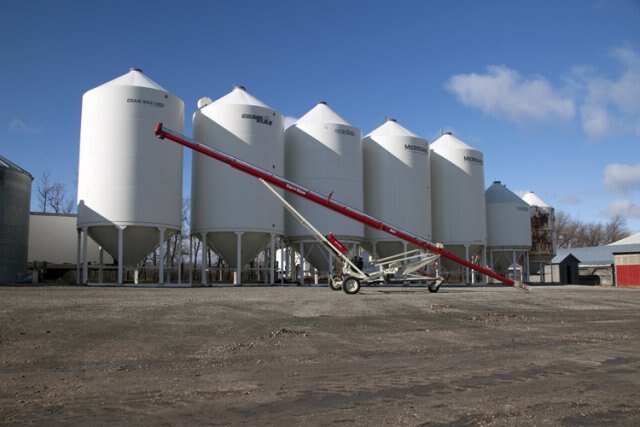

The New CX series of conventional augers from Farm King are available in lengths of 41', 51' and 61' in both 8" and 10" diameters. The augers feature several enhancements to serviceability and stability and an expanded list of options. Several components have been standardized and redesigned to reduce repair and assembly time as well as to facilitating upgrades. The engine mount and leveling systems have been redesigned to ensure perfect belt tension at any auger position.

Features

Engine Mount
The new engine mount has no moving parts for easy set up. The engine is leveled by the belt guard system which ensures perfect belt tension at every auger position - the separate leveling rod has been eliminated.

Wheel Spindles
The wheel spindles are now a bolt-on style, allowing easy set up and replacement. This also helps facilitate the auger mover installation.

Intake
The intake end of the auger flighting is supported by a wooden, self lubricating bushing, which is highly resistant to dirt contamination and is maintenance free.

Options

Auger Mover

The New CX Series of Conventional Auger Movers from Farm King incorporate many changes aimed at improving the function of your CX series auger. Available for the 8" and 10" CX auger lineup, the completely redesigned mover incorporates power steering, hydraulic scissor lift for the intake, sport tread tires, hydraulic winch for auger height adjustment, improved engine mount and leveling systems and longer reach on the intake tube. Many parts have been standardized across the models and the kit is designed for ease of assembly, ease of operation and high maneuverability.

Specifications

Model	CX841	CX851	CX861	CX1041	CX1051	CX1061
Recommended hp (Engine)	16	20	24	28	32	38
Capacity (bu/hr) ¹	-	-	-	4400	4400	4400
Rim size	15"	15"	15"	15"	15"	15"
Hub type	5 bolt	5 bolt	5 bolt	5 bolt	5 bolt	5 bolt
Fuel tank capacity (US Gal) ²	6.5	6.5	6.5	6.5	6.5	6.5
Lower tube reach ³	12' 2"	13' 0"	13' 2"	10' 5"	12' 10"	13' 0"
Maximum spout height	28' 2"	35' 2"	42' 0"	28' 3"	32' 8"	39' 3"

1 Capacity will vary with field conditions. Tested on wheat, - 12.5% moisture, using the CX1041 model.
2 Fuel tanks are supplied with engine configuration only.
3 Tube reach is measured along the auger tube, from the tip of the intake guard to the gear box on the engine drive configurations
