Kuhn Master 103
Contact for Price
listing image
  • listing image
  • listing image
  • listing image

Item Details

ID: 14047308
Make: Kuhn
Type: New
Year: 2018
Model: Master 103

Item Description

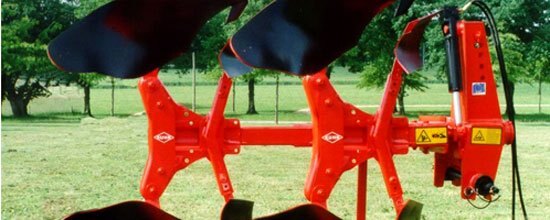

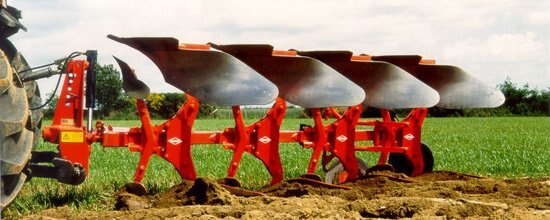

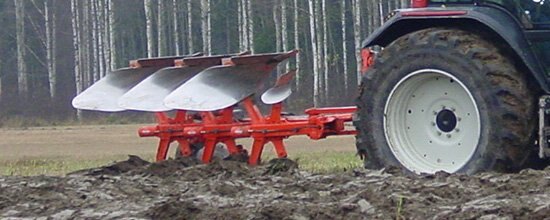

  Master 103 NSH - 2 Bodies

http://www.kuhnnorthamerica.com/imgcatalog.nsf/0/4AFCDF8D8FE9918FC125739300352FF0/$file/MM152_3corps_AV001_NH_g.jpg?OpenElementThe Kuhn Master 103 plows are built to be robust, reliable and economic machines. Only available in the Multi-Master version, these plows have a large trash burial capacity with 27 ½” of underbeam clearance.

This range features independently mounted skimmers for quick and easy adjustment. The 103 plows have a depth control wheel in line with the frame and a transport wheel option fitted with suspension. Benefit from a number of improved features including reinforced box sections, rapid adjustment of furrow widths and superior protection systems.


  Master 103 NSH - 3 Bodies

The Kuhn Master 103 plows are built to be robust, reliable and economic machines. Only available in the Multi-Master version, these plows have a large trash burial capacity with 27 ½” of underbeam clearance.

This range features independently mounted skimmers for quick and easy adjustment. The 103 plows have a depth control wheel in line with the frame and a transport wheel option fitted with suspension. Benefit from a number of improved features including reinforced box sections, rapid adjustment of furrow widths and superior protection systems.


  Master 103 NSH - 4 bodies

The Kuhn Master 103 plows are built to be robust, reliable and economic machines. Only available in the Multi-Master version, these plows have a large trash burial capacity with 27 ½” of underbeam clearance.

This range features independently mounted skimmers for quick and easy adjustment. The 103 plows have a depth control wheel in line with the frame and a transport wheel option fitted with suspension. Benefit from a number of improved features including reinforced box sections, rapid adjustment of furrow widths and superior protection systems.


  Master 103 T - 2 Bodies

The Kuhn Master 103 plows are built to be robust, reliable and economic machines. Only available in the Multi-Master version, these plows have a large trash burial capacity with 27 ½” of underbeam clearance.

This range features independently mounted skimmers for quick and easy adjustment. The 103 plows have a depth control wheel in line with the frame and a transport wheel option fitted with suspension. Benefit from a number of improved features including reinforced box sections, rapid adjustment of furrow widths and superior protection systems.


  Master 103 T - 3 Bodies

The Kuhn Master 103 plows are built to be robust, reliable and economic machines. Only available in the Multi-Master version, these plows have a large trash burial capacity with 27 ½” of underbeam clearance.

This range features independently mounted skimmers for quick and easy adjustment. The 103 plows have a depth control wheel in line with the frame and a transport wheel option fitted with suspension. Benefit from a number of improved features including reinforced box sections, rapid adjustment of furrow widths and superior protection systems.


  Master 103 T - 4 Bodies


The Kuhn Master 103 plows are built to be robust, reliable and economic machines. Only available in the Multi-Master version, these plows have a large trash burial capacity with 27 ½” of underbeam clearance.

This range features independently mounted skimmers for quick and easy adjustment. The 103 plows have a depth control wheel in line with the frame and a transport wheel option fitted with suspension. Benefit from a number of improved features including reinforced box sections, rapid adjustment of furrow widths and superior protection systems.


  Specifications

Specifications Master 103 T - 2 Bodies Master 103 T - 3 Bodies Master 103 T - 4 Bodies
Number of bodies 2 3 4
Maximum authorised tractor power (kW) 44 66 88
Maximum Authorised Tractor Power (hp) 60 90 120
Safety Traction bolt Traction bolt Traction bolt
Plowing width (inches) 14 and 16 14 and 16 14 and 16
Underbeam clearance (inches) 27.5" / 70 27.5" / 70 27.5" / 70
Point-to-point clearance (inches) 35" / 90 35" / 90 35" / 90
Beam section (inches) 4" / 100 4" / 100 4" / 100
Type of bodies Any classic type Any classic type Any classic type


Specifications Master 103 NSH - 2 Bodies Master 103 NSH - 3 Bodies Master 103 NSH - 4 Bodies
Number of bodies 2 3 4
Maximum authorised tractor power (kW) 44 66 88
Maximum Authorised Tractor Power (hp) 60 90 120
Safety Non Stop Hydraulic Non Stop Hydraulic Non Stop Hydraulic
Plowing width (inches) 14 and 16 14 and 16 14 and 16
Underbeam clearance (inches) 27.5" / 70 27.5" / 70 27.5" / 70
Point-to-point clearance (inches) 35" / 90 35" / 90 35" / 90
Beam section (inches) 4" / 100 4" / 100 4.5" / 120
Type of bodies Any classic type Any classic type Any classic type
