Backhoes - Wallenstein
Contact for Price
Call (705) 728-1766
Item Details
ID: 17204638
Make: Wallenstein
Type: New
Make: Wallenstein
Type: New
Year: 2024
Model: Wallenstein Backhoes
Model: Wallenstein Backhoes
Item Description
|

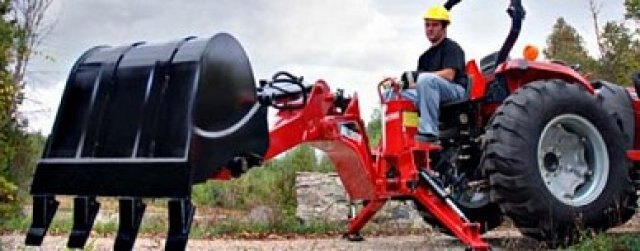

For contractors and landscapers that need to dig deep, but not in their pockets, the Ranchho GX920 makes the grade. The large GX920 extends the usefulness of tractors with digging capabilities of 9-feet deep. Trenching for footings and excavating to spec becomes quick and easy without the added expense of a single-purpose excavator. The digging bucket is built using AR400-strength steel, ensuring rugged longevity. |
|
Features
|
Curved Boom
The right geometry makes the job easier with the over-arching design of the new curved boom. Dig deep without impacting the edge of the excavation. This protects the backhoe from unnecessary damage and prevents ground from falling back into the hole.
|
|
Swing cushioning
Working efficiently means working smoothly, digging and swinging in rhythm. Swinging the boom is controlled by cushioning hydraulic cylinders that reduce machine shake by slowing the boom as it reaches the furthest ends of the swing range.
 |
Mounting Configurations
The Ranchho can be mounted on a subframe, 3-point hitch or skidsteer. All are easy to disconnect and re-attach on the go without wasting time.
|
Dual Cylinder Boom Pivot
All Ranchho models, including the GX620, use two hydraulic cylinders to control the boom swing. The dual cylinders provide strong, consistent movement throughout the entire 180-degree swing range.
|
Greasable Pins
Maintaining your Ranchho is easy with greaseable pins in all the pivot points. Regular servicing keeps your Ranchho ready to go and greaseable pins makes it a simple process.
|
Stabilizers
Stabilizers widen the centre of gravity, making the narrow profile more sturdy when swinging the boom laterally.
|
Bushings
Hardened steel bushings are installed on all the main pivot points of the GX720 and GX920, including swing, boom, dipper and bucket. High quality bushings add life to the Ranchho by reducing the wear and tear as you dig and swing.
|
Pick your Colour
The Wallenstein Ranchho is available in the following colours: Red, Orange, Green, Blue, & Black.
|
Replaceable Teeth
On the bucket, the hardened steel teeth are designed for long-lasting service. When it is time for new teeth they are easily replaceable.
|
| Model | GX920 | GX720 |
| TRANSPORT WIDTH (WITH STABILIZERS UP) | 42½ | 42½ |
| GROUND CLEARANCE | 10½ | 10½ |
| TRANSPORT WEIGHT | 791 LBS. | 765 LBS. |
| OVERALL OPERATING HEIGHT (FULLY RAISED) | 135 | 119 |
| BUCKET ROTATION | 180° | 180° |
| STABILIZER WIDTH (SPREAD) | 89'' | 89'' |
| OPERATING PRESSURE | 2250 PSI | 2250 PSI |
| SAE* BUCKET DIGGING FORCE | 3925 LBS. | 3800 LBS. |
| HYDRAULIC VOLUME REQUIREMENTS | 5-7 GPM (EQUIPMENT WITH HIGHER GPM REQUIRE #BFC501) | 5-7 GPM (EQUIPMENT WITH HIGHER GPM REQUIRE #BFC501) |
| RECOMMENDED SKIDSTEER REQUIREMENTS (SSQT) | 30-100 | 30-60 |
| 3 POINT HITCH | CAT I (PT300) / CAT II (PT322) | CAT I (PT300) / CAT II (PT322) |
| ALL OTHER CYLINDER DIAMETERS | 3 | 3 |
| TRANSPORT HEIGHT (WITH BOOM FULLY RETRACTED) | 92 | 79 |
| LOADING HEIGHT (BUCKET AT 60° ROTATION) | 89 | 80 |
| TRANSPORT LENGTH | 81 | 80 |
| DIGGING DEPTH (2 FT FLAT BOTTOM) | 9'4 | 7'8 |
| REACH FROM SWING POST | 141 | 123 |
| SWING ARC | 180° | 180° |
| STABILIZER WIDTH (TRANSPORT) | 42½'' | 42½ |
| SAE* DIPPER BOOM DIGGING FORCE | 3200 LBS. | 2300 LBS. |
| BOOM LIFT CAPACITY (AT END OF DIPPER 3' FROM GROUND) | 750 LBS. | 925 LBS. |
| RECOMMENDED TRACTOR HP | 45-100 HP | 22-45 HP |
| BUCKET SIZES AVAILABLE | 9, 12, 15, 18, 24'' | 9, 12, 15, 18, 24'' |
| MAIN BOOM CYLINDER DIAMETER | 3'' | 3'' |
