Item Details

ID: 35281980
Make: MK MARTIN
Type: New

Year: 2023
Model: MK5000

Main Properties: Array

Item Description

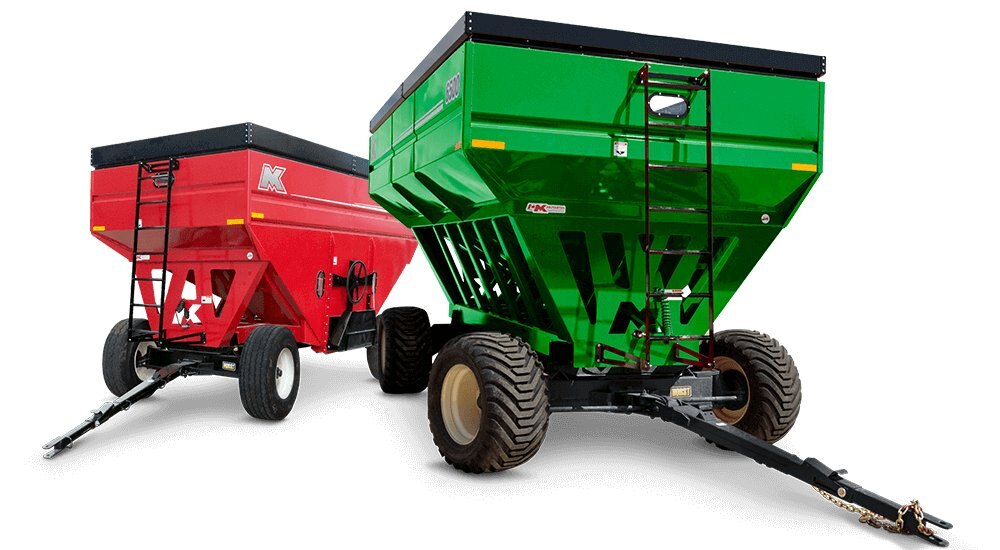

The MK Gravity Box comes in three models, available with optional extensions. Ranging from 270-745 bushel capacities, we have the perfect sized Gravity Box for your operation.

Available on the proven running gear from Horst Wagons, or as a box-only model to place on your own wagon, you can rest easy knowing that the MK Martin Gravity Box is going to get your load where it needs to go.

Model	MK 3200			MK 5000			MK 6500			MKGW12000
Extension	N/A	8"	19"	N/A	8"	12"	N/A	8"	12"	N/A
Capacity (Bushels)	320	375	450	500	570	605	645	745	800	1,200
Hopper Construction	14 GA.			12 GA.			12 GA.			12 GA.
Under Structure	3" x 6" x .188 wall rectangular tube			4" x 8" .188" wall rectangular tubing			4" x 8" .188" wall rectangular tubing			4x8x.25w
Unloading Door	45" width			57" width (standard) 28" width x2 (divider)			57" width (standard) 28" width x2 (divider)			15" length x 47" width X 2
Chute Height	17"-20"			17"-21"			16"-20"			18" (Side Discharge)
Box Dimensions
Length	158"	158"	158"	196"	196"	196"	229"	229"	229"	315"
Width	96"	96"	96"	101"	101"	101"	115"	115"	115"	110"
Height (less wagon)	78"	86"	98"	89"	98"	101"	91"	99"	103"	136"
Height (wagon & 22.5" wheel)	102"	110"	122"	123"	131"	135"	125"	133"	137"	156"
Weight (LBS.)	1,980	2,130	2,270	3,610	3,845	3,915	4,645	4,915	5,005	17,500
Wheel Base	112"			142"			156"			215"
Suggested Wagon	275 Horst Wagon - 425/22.5 Tires			365 Horst Wagon - 425/22.5 Tires			485 Horst Wagon - 425/22.5 Tires			608 Horst Wagon- 425/22.5 Tires (with brakes)

Stock Number :E11571
