Item Details

Item Description

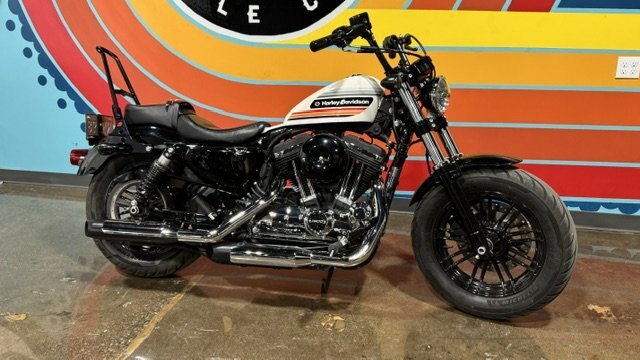

2018 Harley-Davidson Sportster 1200 Custom

The 2018 Harley-Davidson Sportster 1200 Custom is a standout in Harley's cruiser lineup, offering a blend of classic styling and modern performance. With its larger 1,202.8 cc Evolution V-Twin engine, the 1200 Custom delivers robust power and torque, making it ideal for both city cruising and longer highway rides. Its low-slung seat height, wide handlebars, and minimalist design ensure a comfortable and stylish ride.

Technical Specifications

Engine & Performance

• Engine Type: Air-cooled, 4-stroke, 45° V-Twin

• Displacement: 1,202.8 cc (73.4 ci)

• Bore x Stroke: 88.9 mm x 96.8 mm

• Compression Ratio: 10.0:1

• Torque: 96 Nm (70.8 ft-lbs) @ 3,500 rpm

• Power Output: 67 hp (50 kW) @ 6,000 rpm

• Fuel System: Electronic Sequential Port Fuel Injection (ESPFI)

• Cooling System: Air-cooled

• Lubrication: Dry sump

• Transmission: 5-speed

• Final Drive: Belt

• Fuel Capacity: 17.0 L (4.49 US gallons)

• Fuel Economy: Approximately 5.2 L/100 km (45.23 mpg)

• Emissions: 120.6 CO₂ g/km ​Motorcycle Cruiser+1Bikez+1Motorcycle.com+2Motorcycle Database+2Bikez+2Bikez+1Motorcycle Database+1

Dimensions & Weight

• Dry Weight: 255 kg (562 lbs)

• Wet Weight: 268 kg (591 lbs)

• Seat Height: 725 mm (28.5 inches)

• Ground Clearance: 105 mm (4.1 inches)

• Wheelbase: 1,530 mm (60.2 inches)

• Overall Length: 2,225 mm (87.6 inches) ​Motorcycle Database+1Bikez+1

Suspension & Handling

• Front Suspension: Telescopic fork, 39 mm diameter

• Rear Suspension: Twin shocks with adjustable preload

• Rake: 30.0°

• Trail: 107 mm (4.2 inches)

• Front Tire: 130/90-B16

• Rear Tire: 150/80-B16

• Brakes: Dual-piston calipers with optional ABS ​Motorcycle.com+2Bikez+2Motorcycle Database+2Motorcycle Cruiser+2Motorcycle Database+2Bikez+2

Chassis & Styling

• Frame: Mild steel, tubular frame with cast junctions

• Wheels: Chrome, 5-spoke cast aluminum

• Exhaust: Chrome, staggered with slash-cut mufflers

• Lighting: Halogen headlamp with standard turn signals

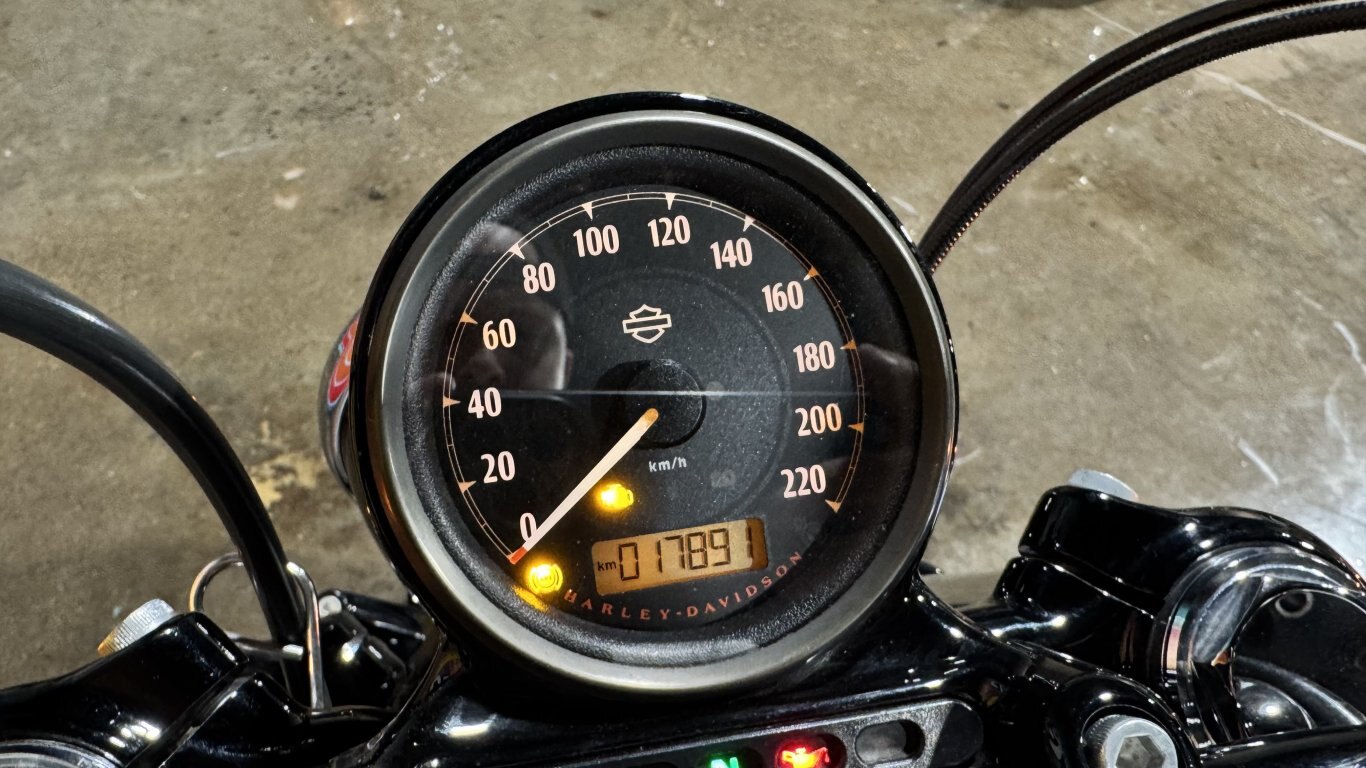

• Instrumentation: Handlebar-mounted electronic speedometer with odometer, tripmeter, clock, and diagnostic readouts ​BikezMotorcycle Database+1Bikez+1

Highlights & Features

• Classic Styling: The 1200 Custom features a minimalist design with a solo seat, wide handlebars, and a clean, uncluttered look.

• Enhanced Performance: The larger 1,202.8 cc engine provides increased power and torque, enhancing acceleration and cruising capabilities.

• Comfortable Ride: With a low seat height and ergonomic handlebars, the 1200 Custom offers a comfortable riding position suitable for various riders.

• Customization Potential: The Sportster platform is known for its extensive customization options, allowing riders to personalize their bike to suit their style and preferences.​
