Item Details

Item Description

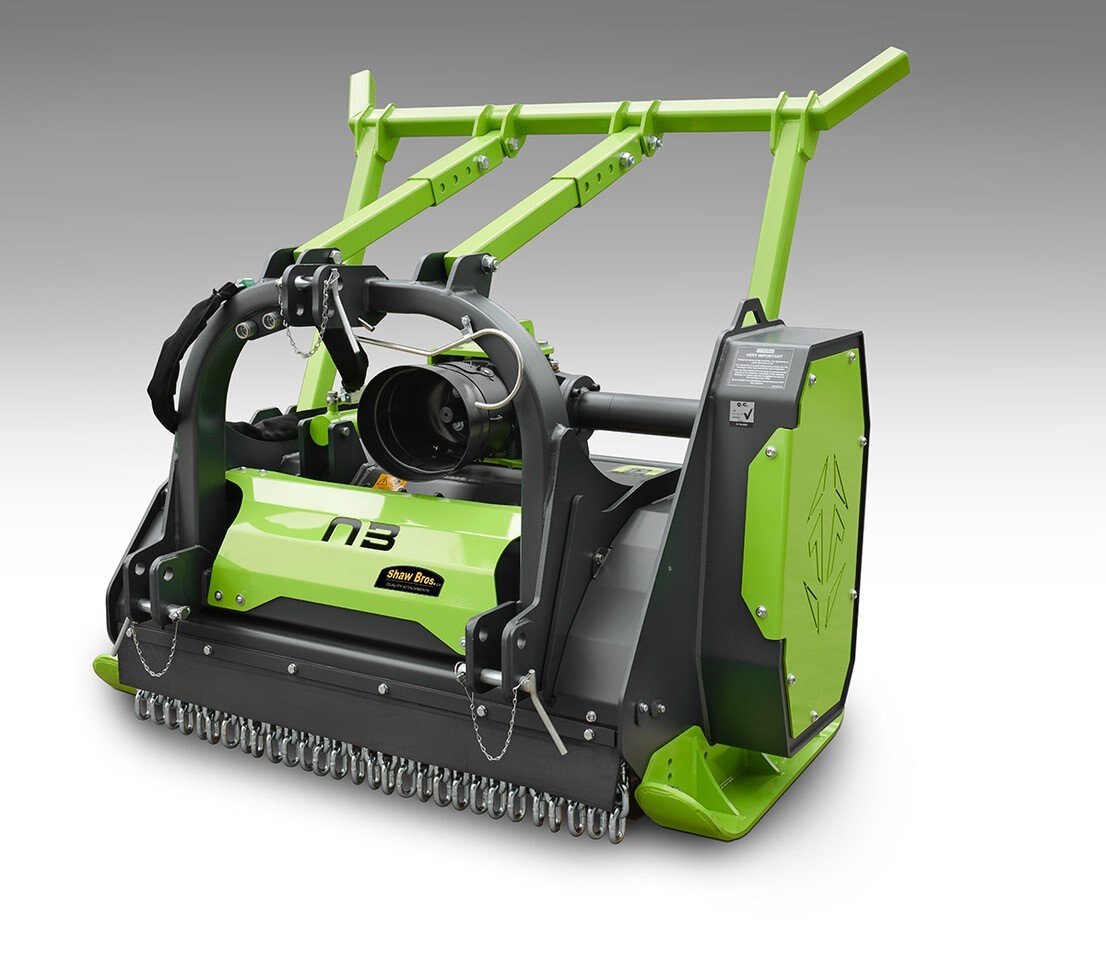

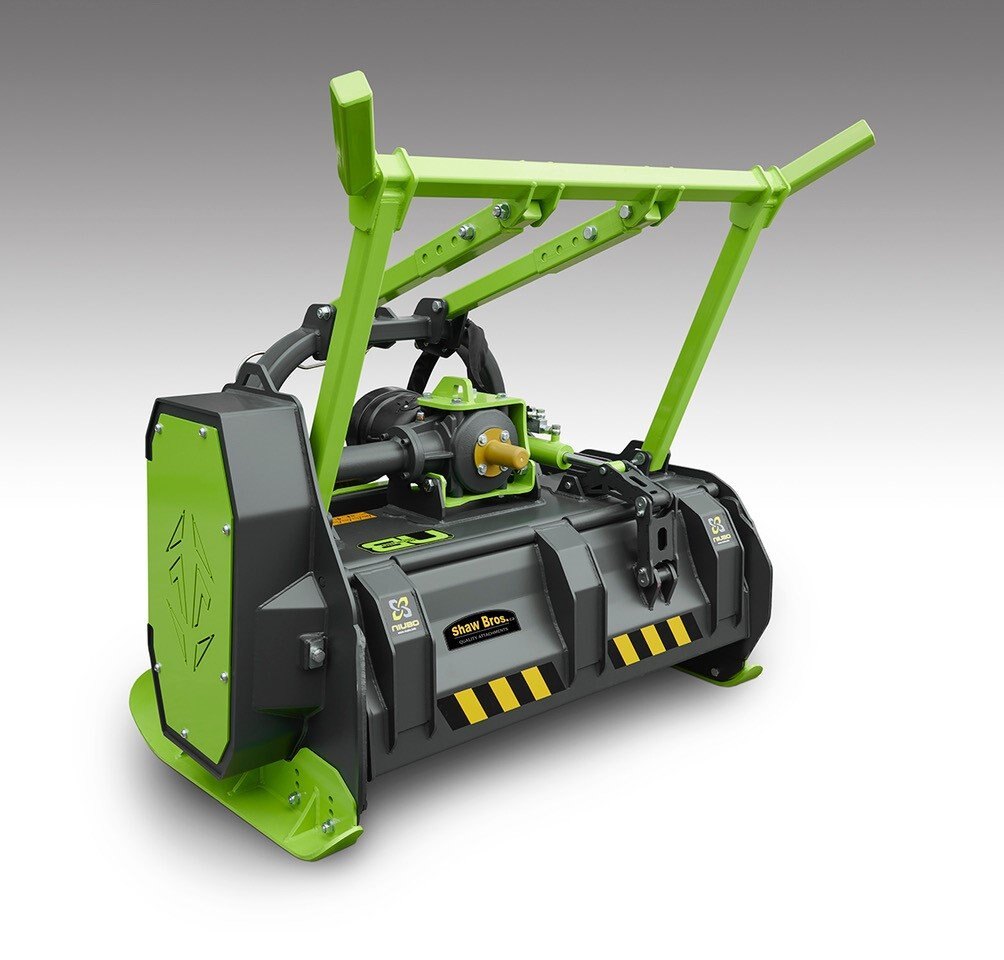

Very capable semi forestry mulcher with a sturdy design all-round able to cope with any kind of agricultural job and light forestry duties.

Standard equipment

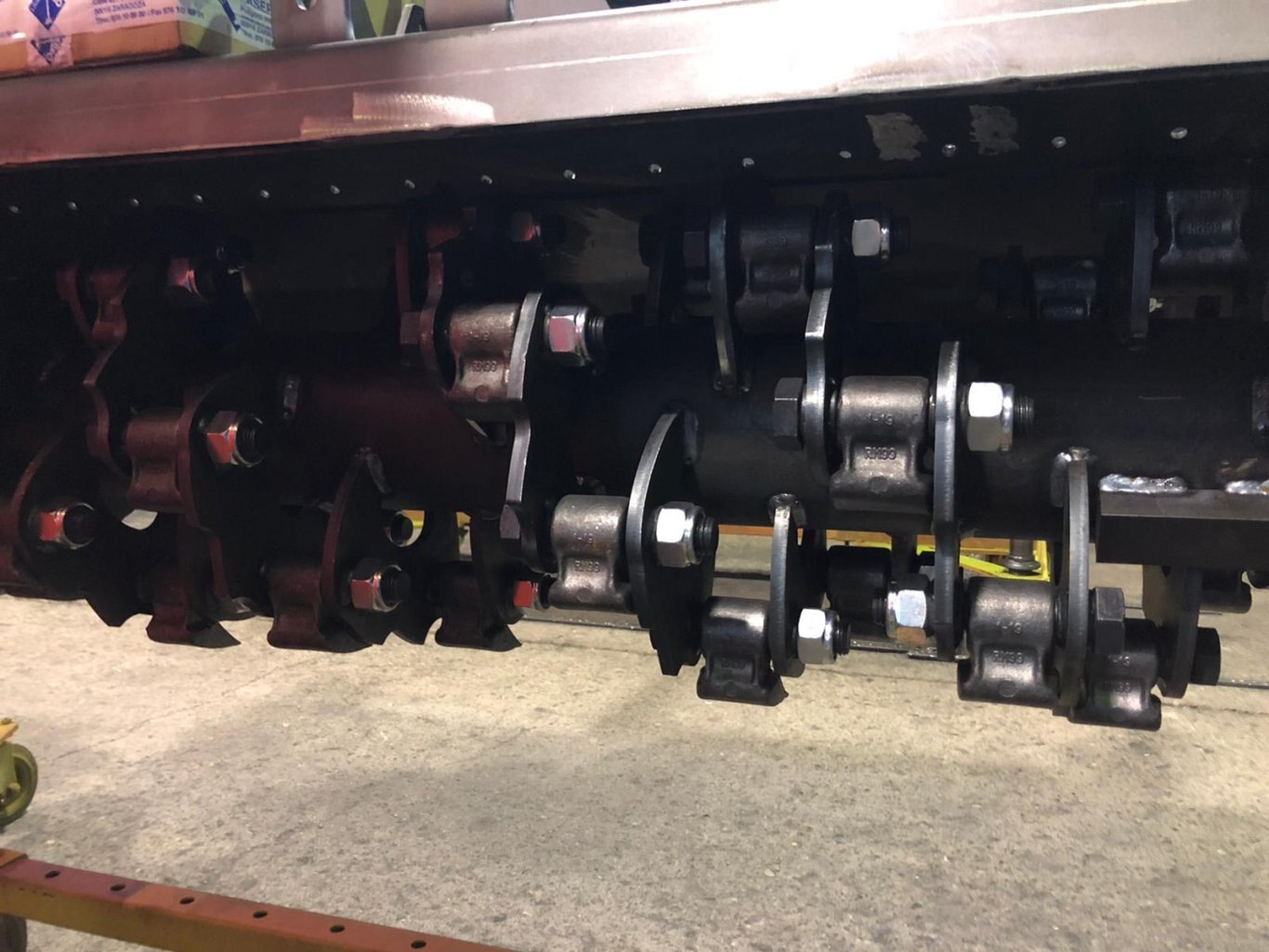

– High versatility open helix flail layout rotor with special design Tanker.
– Sturdy chassis with inner reinforcements.
– Centered fixed three point hitch CAT II
– Gearbox with double free wheel allows the machine to be attached to the front or to the rear of the tractor.
– Built in belt casing.
– External bearing hub with protection
– 1 row of special crest shaped bolted-on Niubo counter knife.
– Special design skates that will match a wider range of grounds.
– Single cylinder back door.
– One-sided power transmission through cogged V-shaped belts.
– Third pulley tensioner, bolt adjustable.
– Rotor and hub greasing points protected.
– Joints without greasing points, with self-lubricated bushings all-round.
– Double row front chains and thrown-debris protection rubber stripe.
– PTO Shaft
– Note: Gearbox 540 rpm as a standard, unless otherwise specified (1.000 rpm) by the order.

Models

MOD.	MM	KG	Nº	C.V.	Ø	R.P.M.	Nº	MM	MM	MM
TTK160	1600	1020	28	90-120	15 cm	540	5	1940	1120	1110
TTK180	1800	1100	32	90-120	15 cm	540	5	2140	1120	1110
TTK200	2000	1180	36	95-120	15 cm	540	5	2340	1120	1110
TTK220	2200	1260	40	110-120	15 cm	540	5	2540	1120	1110
