INFORMATION DETAILS
ID: 13858184
|
Year: 2018
|
Make: New Holland
|
Model: U80C
|
Type: New
|
| MSRP:
N/A |
Engine Size - cc: 207 |
| Bore/stroke, in (mm): | 3.9 x 4.33 (99 x 110) |
| Model: | F5HFL463D*F005 |
| Top of canopy, ft/in (m): | 8' 12'' (2.73) - 8' 9'' (2.67) |
| Top of cab, ft/in (m): | 8’ 12'' (2.74) - 8' 10'' (2.68) |
| Bucket hinge pin fully raised, ft/in (m): | 1' 1'' (0.33) - 1' 3'' (0.37) |
| Overall length w/ 3-point hitch, ft/in (m): | 16' 11'' (5.15) - 16' 8'' (5.09) |
| Ground clearance at front axle, in (m): | 10.9 (0.28) |
| Wheelbase 4WD, ft/in (m) Wheelbase 2WD, ft/in (m): | 7' 1'' (2.15) 7'0'' (2.14) - 7' 1'' (2.15) 7'0'' (2.14) |
| Reach from front axle centerline – bucket on ground, ft/in (m): | 6' 3' (1.89) - 5' 12'' (1.83) |
SELLER DESCRIPTION
|

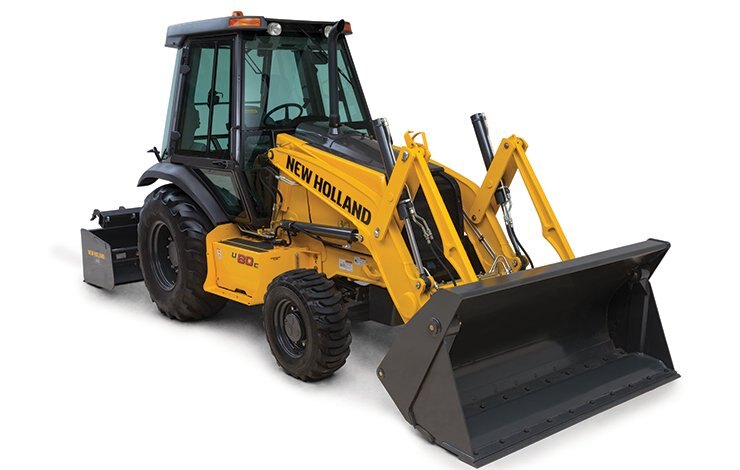

The New Holland U80C tractor loader provides profit-making power on both front and back. The Tier 4 Final engine delivers the responsive power you need for loading and grading while reducing emissions.
|
|
Features
|
|
CLASS-LEADING POWER AT BUCKET AND HITCH
The U80C tractor loader from New Holland delivers 74 gross horsepower of clean power with its Tier 4 Final certified engine. You get responsive power at both bucket and hitch, so the U80C pays its way by loading, stacking, scraping and leveling. Add the Glide Ride option, and the boom cylinders become the equivalent of giant shock absorbers to stabilize the load while traveling.
|
Place loads precisely
The curved-arm loader linkage provided on the U80C tractor loader provides hydraulic bucket leveling for less spillback, as well as excellent reach at maximum dump height for truck loading. The unique reverse-mounted loader arm cylinders give you maximum bucket breakout force and superior dump speed on the bucket. |
Superior scraping and leveling performance
Rugged Class II three-point hitch with controllable down pressure provides excellent scraping and leveling performance.
|
|
Smooth direction changes
The synchromesh transmission with power shuttle gives you smooth control and easy forward-reverse shuttling.
|
Operating comfort
The large, efficient, flat-deck operator platform provides easy-to-use controls and unobstructed views for outstanding visibility.
|
|
|
